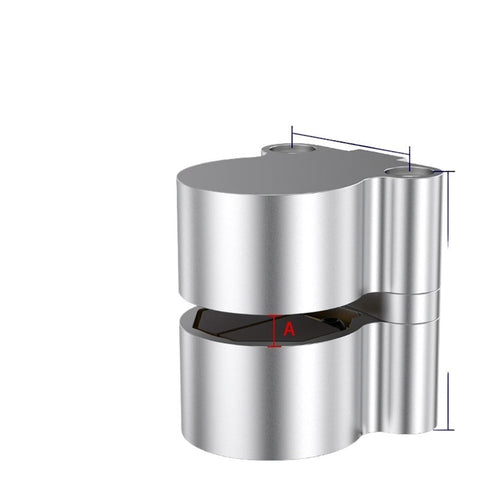

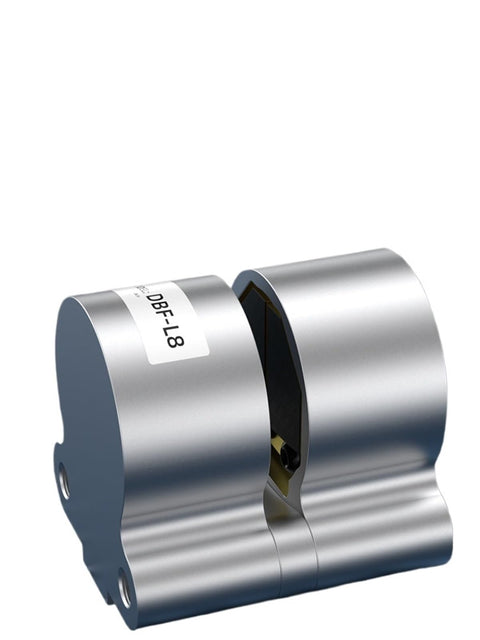

Industrial CNC Machine Tool Pneumatic Brake Cylinder CDBF10/15/20 Butterfly Disc Brake System For Precision Machining, Auto Feed, And Heavy Duty Tooling

CNC Pneumatic Butterfly Disc Brake System for Precision Work
✔️ Single unit brake cylinder for heavy-duty CNC tooling

The CDBF10/15/20 Butterfly Disc Brake System is a compact pneumatic brake cylinder designed for CNC machine tools, precision machining setups, and heavy-duty tooling lines. It’s commonly integrated into auto-feed modules and milling centers to ensure fast, repeatable clamping and controlled stopping during machining cycles.

✅ Butterfly disc brake design for precise engagement and repeatable stops
✅ Pneumatic actuation with clean air supply connections
✅ Compatible with standard mounting patterns on CNC tooling systems
✅ Ideal for auto-feed, tool changers, and heavy-duty milling operations

💡 What is a typical use of a pneumatic brake cylinder in CNC machines?

These brakes provide handy control over clamping and stopping during machining and tool changes. - handy clamping and fast release to keep cycle times down - compatible with standard air lines and ports - improves repeatability and safety during tool changes - low maintenance for long-term reliability
