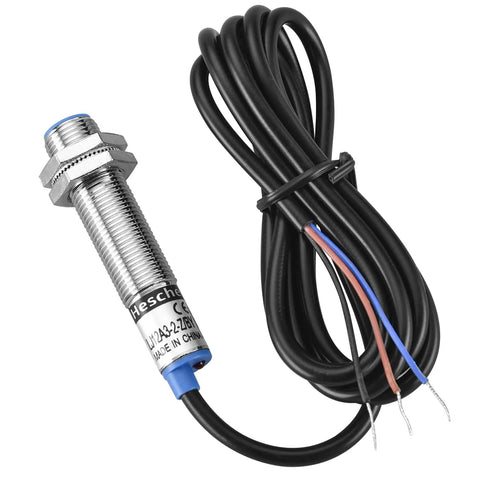

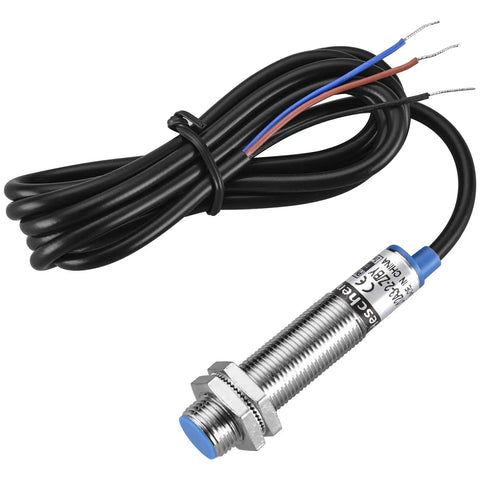

Inductive Proximity Sensor Switch M12 Shield Type LJ12A3-2-Z/BY, 2mm Detection Range, 10-30V DC, 200mA, PNP Normally Open, 3-Wire, 120cm Cable, Blue Shielded Metal Housing, Rock Solid Ready For Industrial Automation

Shielded M12 LJ12A3-2-Z/BY Proximity Sensor, 2mm Range
✔️ PNP NO, 3-wire, 10-30VDC, 200mA, 120cm cable, blue shield, Pack:1 unit

These shielded inductive proximity sensors in M12 shield housing detect metal targets with high repeatability and rugged reliability. They’re commonly used in factory automation setups such as conveyors, guards, and pick-and-place robotics.

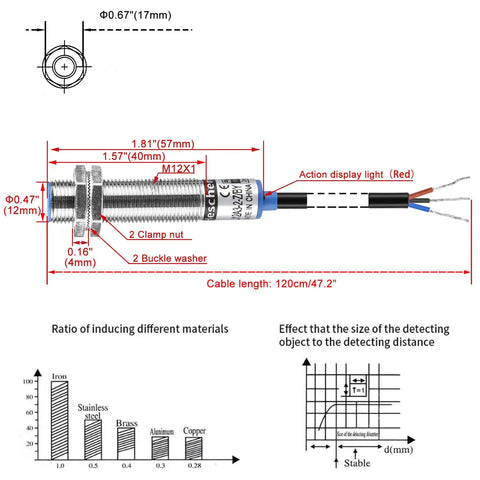

Dimension	Metric	Imperial
Mounting hole diameter	12 mm	0.47 in
Detecting distance	2 mm	0.08 in
Set distance	0-1.6 mm	0-0.063 in
Cable length	120 cm	47.24 in

✅ Mounting hole diameter: 12mm (0.47 in)
✅ Detect distance: 2mm ±10% (0.08 in)
✅ Set distance: 0-1.6mm (0-0.063 in)

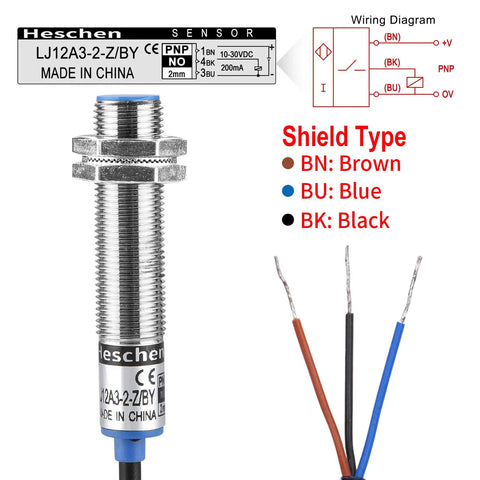

✅ Output type: PNP NO, 3-wire
✅ Working voltage: 10-30 VDC; current: 200mA
✅ Cable length: 120 cm (47.24 in)

💡 What is a shielded inductive proximity sensor used for in automation projects?

These handy devices provide non-contact metal detection to streamline assembly lines.

- detects metal targets without contact in positioning tasks - handy for conveyors and robotics wiring and control - works with 10-30 VDC PNP NO outputs - rugged blue shielded housing for harsh environments
