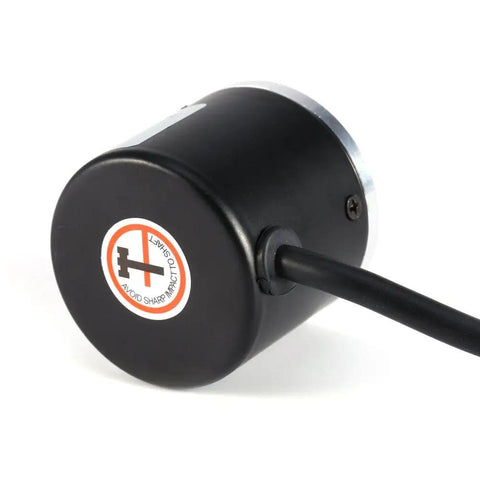

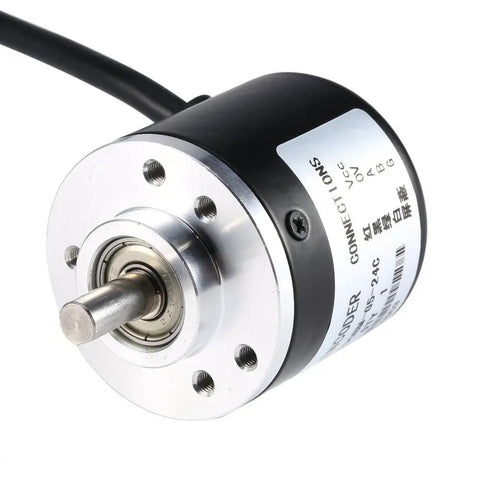

Incremental Rotary Encoder 600P/R 2-Phase Magnetic With AB Output Wide 5V To 24V Power Range 6mm Shaft 1.5m Cable High-Res Pro-Grade For Precision Speed Position And Angle Sensing
✔️ 600P/R AB output, 6 mm shaft, 1.5 m cable, 5-24V, 1 pc
The incremental rotary encoder measures rotation speed, angle, and displacement. It’s a compact, high-resolution device used in automation, robotics, and precision length control. Common applications include steel-cut length regulators, leather guillotine automation, civil height measurement, and student robotics projects.
✅ Pulses: 600 p/r (Single-phase 600 pulses /R, Two phase 4 frequency doubling to 2400 pulses)
✅ Power source: DC5-24V
✅ Shaft: 6x13 mm / 0.24x0.51 in
✅ Output: AB 2-phase rectangular orthogonal pulse circuit, NPN open collector
✅ Max speed: 5000 R/min

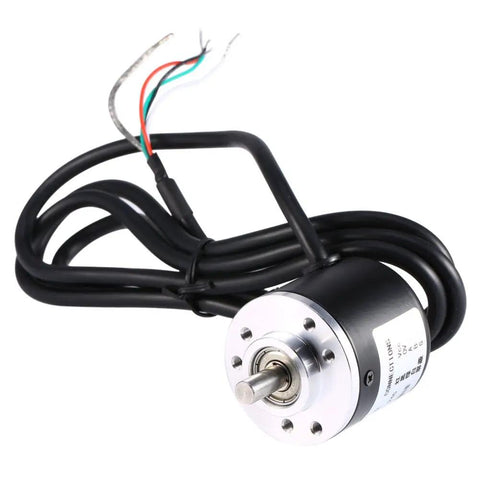

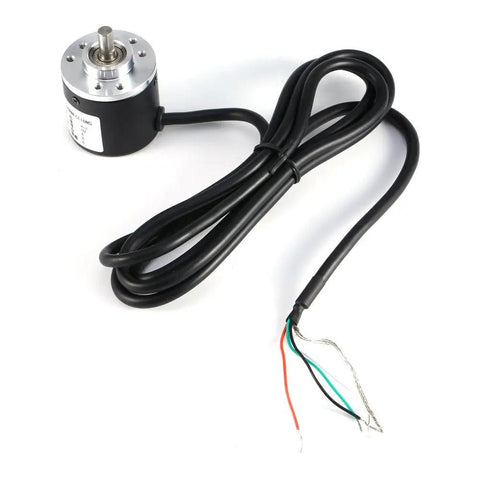

✅ Cable length: 1.5 m
| Dimension | Value |
|---|---|
| Shaft | 6x13 mm (0.24x0.51 in) |
| Overall size | 38x35.5 mm (1.49x1.39 in) |
💡 What is an incremental rotary encoder used for in automated systems?
It provides precise rotation speed, angle, and position feedback for control loops in automation and robotics.
- AB phase output enables direction and speed detection- DC 5-24V input supports easy wiring with drives
- Compact 6 mm shaft fits tight spaces in machinery
- 1.5 m cable offers flexible mounting options
