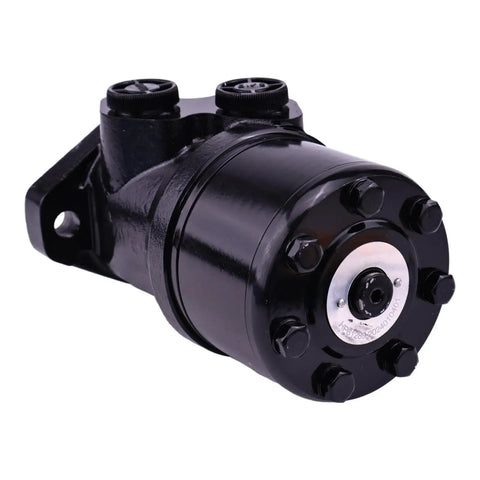

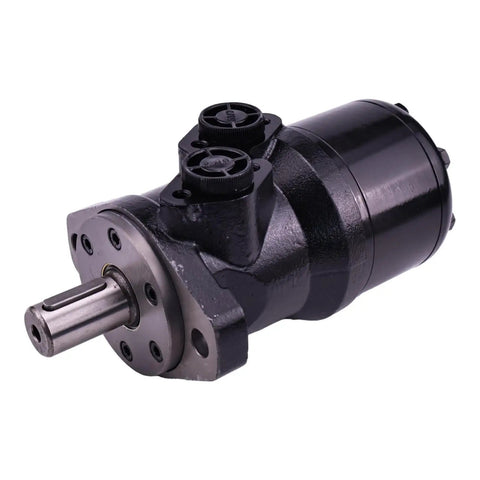

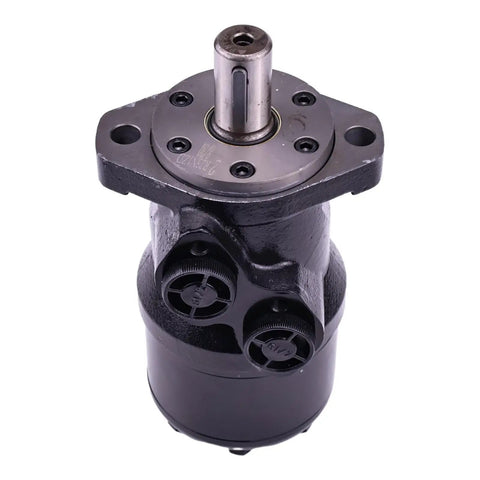

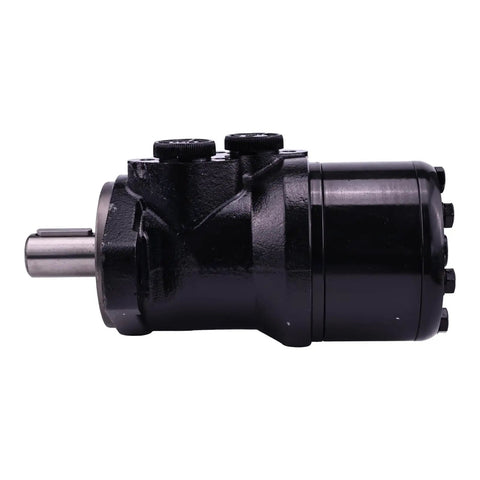

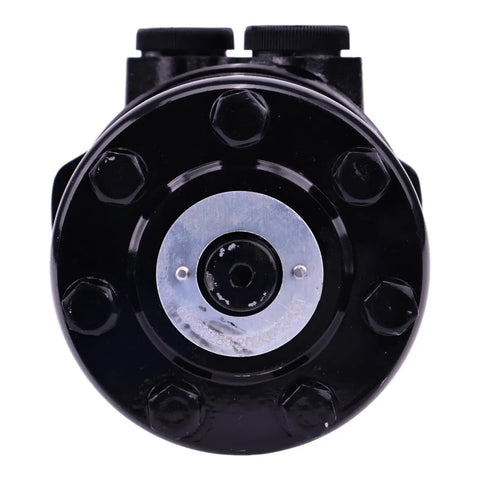

Hydraulic Orbital Motor OMR250 One Inch Shaft With Half Inch BSP Side Ports Low Speed High Torque Workhorse For Heavy Machinery Industrial Power Transmission Durability And Reliable Performance
✔️ 249.3 cm3 displacement, max torque 610 Nm, 240 rpm cont, 10 kW
The OMR250 is a hydraulic orbital motor designed for heavy-duty power transmission. It delivers high torque at low speed, ideal for industrial machinery, conveyors, and off-road equipment where reliability matters. This unit features a 1-inch cylindrical output shaft and side ports for simple plumbing in rugged environments.
✅ Displacement: 249.3 cm3 (15.26 in3)
✅ Output shaft: 1in cylindrical with 1/2 BSP side ports
✅ Max speed cont: 240 rpm; int: 300 rpm
✅ Max torque cont: 540 Nm (4780 lbf in); int: 610 Nm (5400 lbf in)
✅ Max output power cont: 10.0 kW (13.4 hp); int: 12.0 kW (16.1 hp)
✅ Max pressure drop cont: 175 bar (2540 psi); int: 200 bar (2900 psi)
✅ Max oil flow cont: 60 l/min (15.9 gpm); int: 75 l/min (19.8 gpm)
✅ Max inlet pressure cont: 175 bar (2540 psi); int: 200 bar (2900 psi)
💡 What is a hydraulic orbital motor used for in industrial power transmission systems? This handy drive converts hydraulic pressure into rotational torque for low-speed, high-torque applications in rugged work environments.
- handy for low-speed drives in heavy equipment
- ideal for conveyors, winches, and machine tools in harsh settings
- robust, compact design fits tight spaces in power trains
- easy installation with 1in shaft and side-port plumbing
💡 What should I consider when choosing a hydraulic orbital motor for a project?
- match displacement and torque to load and speed requirements
- verify port size and mounting compatibility with existing gear trains
- assess durability features for harsh operating environments
