Hydraulic Oil Cooler For CNC Lathe Oil Pump Air Cooled Heat Exchanger With 720 Kcal Per Hour Cooling 10 Liters Per Minute Flow 12V Power Workhorse Radiator For Wide Industrial Jobs

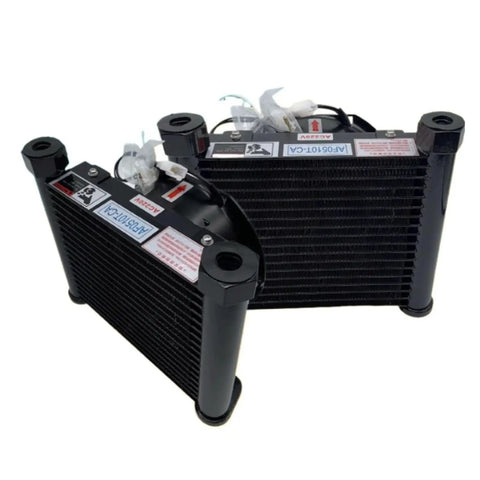

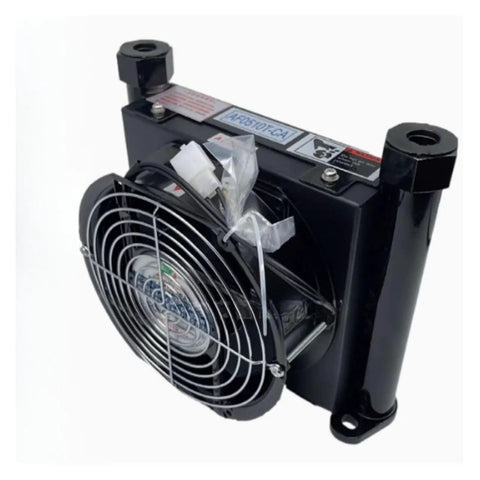

Air-Cooled hydraulic oil cooler for CNC lathes, single-unit
✔️ 720 kcal/h cooling, 10 L/min, 12V power, compact radiator

This compact, air‑cooled hydraulic oil cooler is designed to regulate oil temperature for CNC lathe oil pumps during heavy operation in metalworking and industrial settings. It balances heat, keeps viscosity stable, and helps extend pump life. Dimensions 240 x 125 x 235 mm (9.45 x 4.92 x 9.25 in). Working pressure up to 2.0 MPa. Equipped with a 48W fan delivering 200 m³/h, 170 mm diameter, in black finish. Ideal for tight spaces and continuous duty.

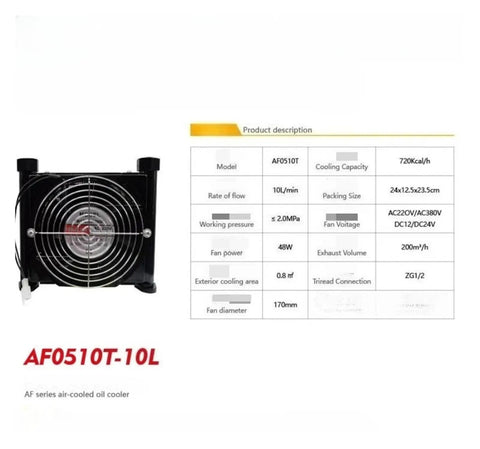

✅ Cooling capacity: 720 kcal/h
✅ Flow rate: 10 L/min

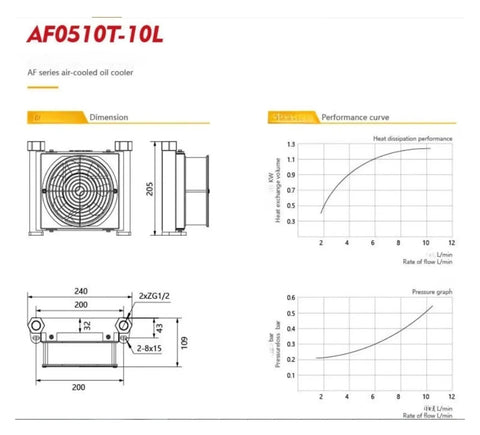

✅ Dimensions: 240 x 125 x 235 mm (9.45 x 4.92 x 9.25 in)
✅ Working pressure: up to 2.0 MPa
✅ Power: 48W fan, exhaust 200 m³/h, 170 mm diameter
✅ Color: Black

💡 What is an air cooled hydraulic oil cooler used for in industrial equipment? This handy device helps keep hydraulic oil temperature in check during heavy workloads.
- oil cooling for CNC machines, lathes, and presses
- extends pump life by maintaining oil viscosity and performance
- improves heat dissipation in compact layouts and awkward spaces
- simple installation with standard hydraulic connections
