Hydraulic Air Cooler With 60L/Min Flow And Oil Cooled Radiator Heat Exchanger, Powerful Fan For A Fast Temp Drop, 12V Operation, Industrial Cooling To Beat Overheat

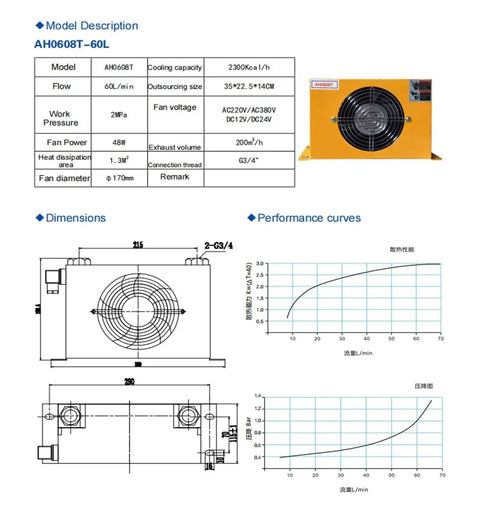

✔️ 2300 kcal/h cooling, 2.0 MPa max pressure, 1.3 m2 fin area, 6 kg

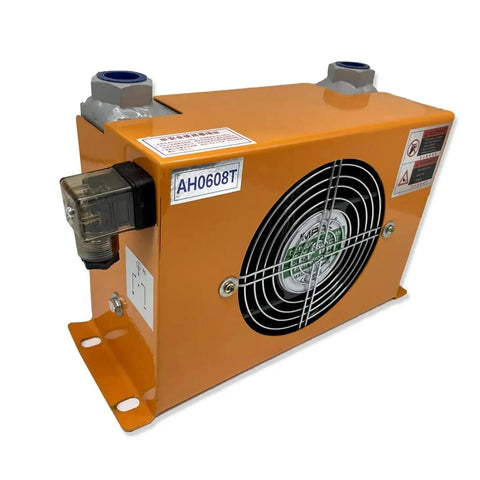

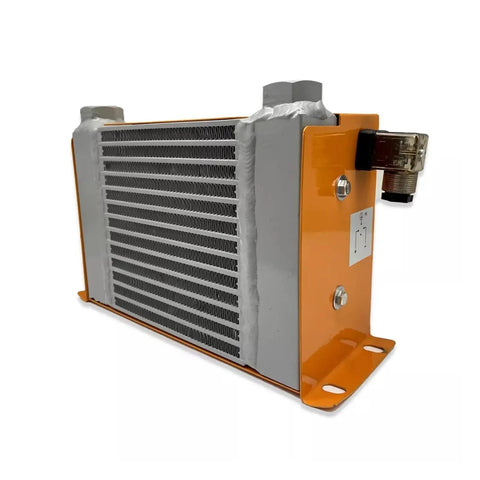

The AH0608T-CA Hydraulic Air Cooler delivers 2300 kcal/h of cooling capacity with a 60 L/min coolant flow, designed to prevent overheating in demanding industrial systems. It’s ideal for hydraulic circuits, CNC machines, and other heavy equipment, using an oil-cooled radiator heat exchanger and a robust 38 W fan to pull heat away efficiently. This unit withstands work pressures up to 2.0 MPa (290 psi) and comes in a compact 6 kg frame with easy transport.
✅ Cooling capacity: 2300 kcal/h
✅ Flow rate: 60 L/min (15.85 gal/min)
✅ Working pressure: up to 2.0 MPa (290 psi)
✅ Discharge air volume: 200 m3/h (656 ft3/h)
✅ Outer fin heat dissipation area: 1.3 m2 (4.26 ft2)
✅ Weight: 6 kg
✅ Packing size: 350 x 230 x 140 mm (35 x 23 x 14 cm)
✅ Thread size: RC3/4"
✅ Fan diameter: 170 mm
✅ Fan power: 38 W
💡 What is a hydraulic air cooler used for in industrial cooling systems?
In handy for shedding heat from hydraulic oil and process coolants in heavy equipment.
- hydraulic oil cooling in industrial systems - maintains stable temperatures to reduce downtime - supports reliable operation in high-load environments
