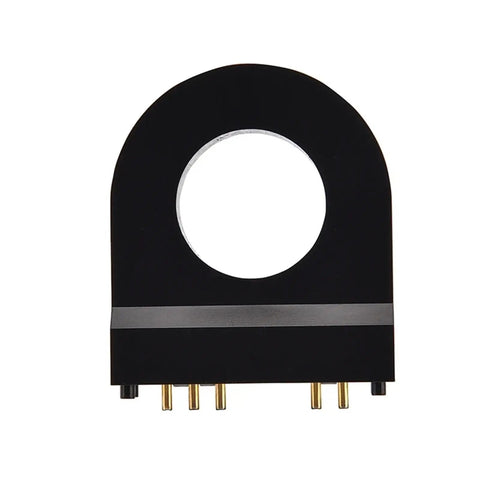

HYCA 16 Type B Leakage Detection Sensor For 11KV EV Charger RDC PD MD Device With 6MA DC And 30MA AC Toroidal Coil Single Phase PCB Mounting Straight Up Reliable Auto Gear Built Different Zero Hassle Setup

A Single Residual Current Transducer For Charging Stands
✔️ HYCA-16 Single Phase PCB Residual Sensor For 11KV Systems

This unit functions as a tight residual current detector built for electric vehicle charging stations. It watches ground fault activity across single phase circuits and cuts power fast when stray current spikes up.

✅ Toroidal wire wound architecture delivers stable magnetic coupling
✅ Factory programmed output thresholds set to 6mA direct current and 30mA alternating current
✅ Direct board integration via standard surface mount pads simplifies assembly workflows
✅ Dedicated housing protects internal windings against moisture and dust ingress
✅ Optimized for compliance testing on Level 2 and fast charging dispensers

💡 How does a technician properly tune calibration settings for modern solid state leakage detection units mounted on control panels Swapping out dead units stays pretty handy once you wrap your head around the core wiring schematics. - Matching coil saturation limits prevents false tripping during normal operating cycles - Verifying terminal polarity guarantees accurate signal routing to monitoring circuits - Grounding the outer shield reduces electromagnetic interference during rapid switching operations - Running continuity checks before energizing eliminates potential arc flash risks during commissioning
