HVAC Blower Motor Three Quarter HP One Phase Three Speed 208 And 230 Volt 1075 RPM With Single Oval Run Capacitor Fits Models 8905 10590 WG840590 FD1076 No Sweat Install And Smooth Airflow

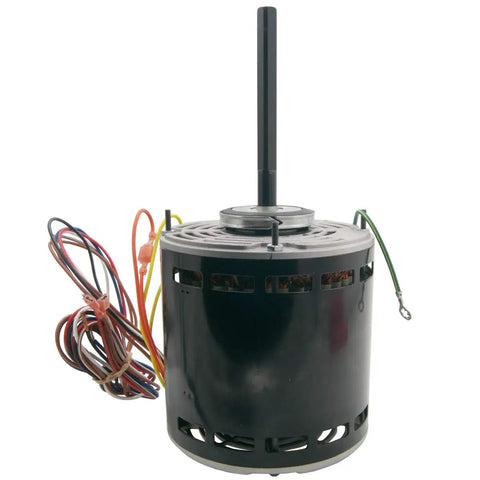

Three-Quarter HP 1-Phase HVAC Blower Motor 208/230V
✔️ 3 speeds (1075/950/850 RPM) at 208/230V direct-drive

Single-phase blower motor designed for HVAC systems such as furnaces and air handlers. It uses a direct-drive configuration with sleeve bearings to deliver smooth airflow and reliable performance.

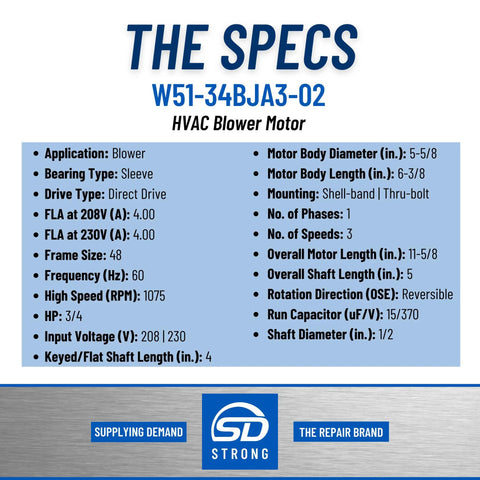

✅ FLA at 208V: 4.00 A
✅ FLA at 230V: 4.00 A

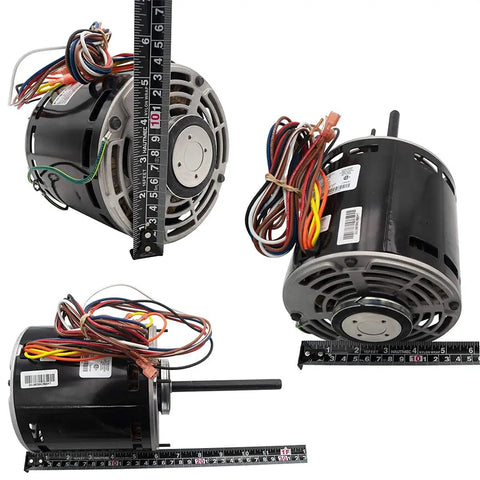

✅ Frame size 48; overall length 11-5/8 in; diameter 5-5/8 in
✅ High speed 1075 RPM; HP 3/4; 60 Hz

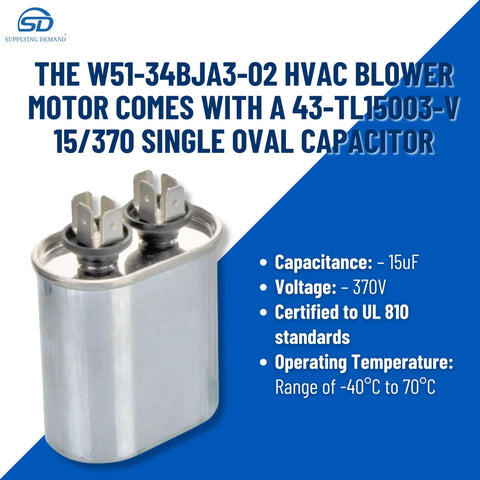

✅ Run capacitor 15/370 uF; shaft 1/2 in dia, 5 in length
✅ Fits models 8905, 10590, WG840590, FD1076, 43590

💡 What is a common question about replacing a single-phase blower motor in HVAC systems? Replacing a blower motor correctly keeps airflow steady and the system happy. - How to pick the right HP and voltage for furnace or air handler? - What does the run capacitor do in starting and running the motor? - Why is matching RPM important for quiet, efficient airflow?

✝️
