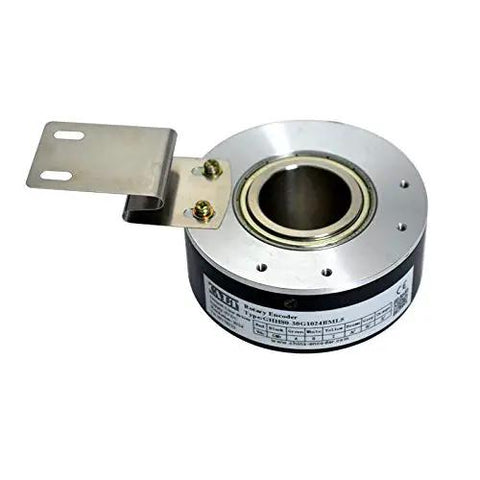

Hollow Shaft Rotary Encoder With 80Mm Outer Diameter And 30Mm Aperture, 1024P R Resolution, NPN Output, 5V To 26V DC Supply, Built For Angle Position Speed Length And Displacement Measurement In Industrial Machinery

Hollow Shaft Encoder 80mm OD, 1024P, NPN, 1 pc
✔️ 1024P/R hollow shaft encoder, 80mm OD, 30mm bore, 5-26V NPN

This hollow shaft rotary encoder is built for industrial machinery to measure angle, position, speed, length, and displacement. Its hollow shaft design enables easy integration with passing shafts and reduced mechanical obstruction in automation systems.

✅ 80 mm outer diameter
✅ 30 mm aperture
✅ Resolution 1024 P/R
✅ Output: NPN
✅ Supply voltage: 5-26 V DC
✅ Applications: angle, position, speed, length, and displacement measurement in industrial machinery

💡 What is a hollow shaft rotary encoder used for in automation and manufacturing?

It provides accurate motion feedback for precise control in compact setups.

- handy for through-shaft installations in tight spaces
- 1024P/R resolution supports precise angle and displacement data
- compatible with 5-26V DC supplies and NPN outputs for easy PLC or microcontroller integration
