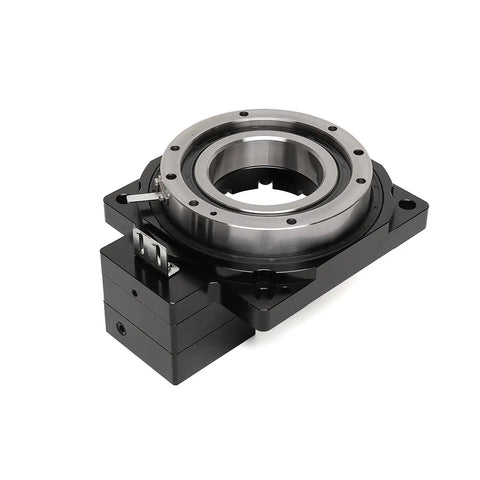

Hollow Rotary Actuator With Ultra High Precision Hollow Rotating Platform And Positioners For Nema 23 Stepper Motors Substitutable For Direct Drive Motors And Cam Indexers Built For Multi Axis Automation 4th And 5th Axis Glue Dispensing And Packaging
✔️ Hollow design, 1 arcmin accuracy, 32 Nm torque, IP40
Designed to pair with standard Nema 23 stepper motors, this hollow rotary actuator provides a precise rotating platform for multi-axis automation. It's ideal for glue dispensing, packaging lines, 4th and 5th axis applications, and precision inspection setups.
✅ Outer diameter: 130 mm (5.12 in)
✅ Reducing ratio: 18:1
✅ Max torque: 32 Nm
✅ Positioning accuracy: 1 arcmin
✅ Repeated positioning accuracy: 15 arcsec
✅ Parallelism: 0.01 mm
✅ Concentricity: 0.01 mm

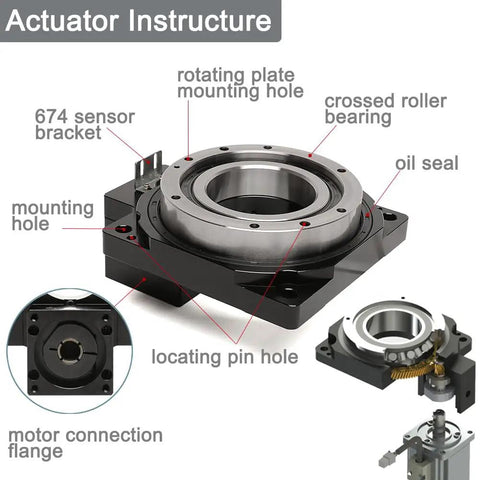

✅ Bearing: Crossed Roller Bearing
✅ Shaft diameter: 8 mm (also 6.35 mm / 1/4")
✅ Mounting holes: 4 x M4, 47.14 mm spacing, pilot 38.1 mm
✅ Max speed: 200 r/min
✅ IP rating: IP40
✅ Service life: 20000 h
💡 What is a hollow rotary actuator used for in multi-axis automation and packaging lines? This handy device adds a precise rotating platform for the 4th/5th axis and is commonly used in glue dispensing, packaging, and robot joints. - Handy for adding a precise 4th axis to CNCs and assembly lines - Direct drive compatibility with Nema 23 motors and adaptable flanges - Reduces wiring complexity and calibration time thanks to hollow design - Improves repeatable positioning and stability with crossed roller bearings
