Hollow Rotary Actuator And Top Notch Hollow Rotating Platform For Nema 34 Stepper Motors, Replace Direct Drive And Cam Indexers, 1 Arcmin Positioning, 15 Arcmin Repeat, Built For 4th And 5th Axis, Glue Dispensing And Packaging Automation
✔️ 1 arcmin positioning, 15 arcmin repeat, hollow design, 200 mm table
Designed as a high-precision hollow rotating platform mounted directly to NEMA 34 motors, this unit is ideal for 4th and 5th axis tasks like glue dispensing, packaging automation, and precision inspection systems.

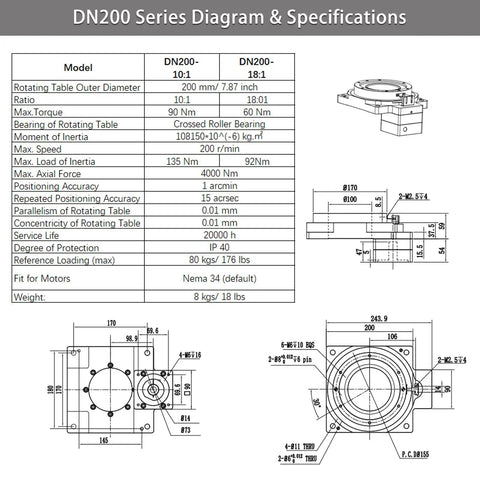

✅ Outer diameter: 200 mm (7.87 in) rotating table
✅ Positioning accuracy: 1 arcmin
✅ Repeated positioning accuracy: 15 arcsec
✅ Reducing ratio: 10:1
✅ Max torque: 90 NM
✅ Bearing: Crossed Roller Bearing
✅ Moment of inertia: 108150×10^-6 kg m^2
✅ Max speed: 200 r/min
✅ Max axial force: 4000 NM
✅ Reference loading (max): 80 kg (176 lbs)
✅ Service life: 20000 h
✅ Degree of protection: IP40
✅ Fit for motor: Nema 34 (14 mm shaft)
✅ Weight: 8 kg (18 lbs)
💡 What is a hollow rotary actuator used for in precision automation? This handy device is designed to provide compact, high-accuracy rotation for multi-axis systems and helps streamline glue dispensing, packaging, and inspection workflows.
- Handy for mounting on CNC machines and packaging lines to drive a 4th or 5th axis
- 1 arcmin positioning accuracy enables tight alignment in tight spaces
- Hollow design simplifies wiring and tubing routing for air or fluids
- Direct-mount with NEMA 34 motors reduces setup time and parts
