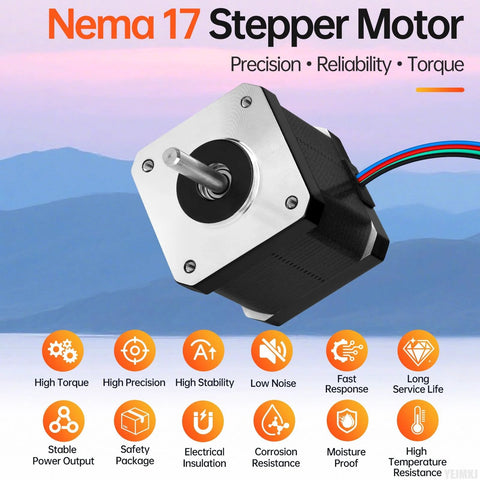

High Torque Nema 17 Stepper Motor 2 Phase 1.8 Deg Bipolar 0.6Nm Holding Torque 1.6 Ohm 2.3A 4 Wire Shaft 24mm 5mm Holes 1M Cable For 3D Printers DIY Robots CNC Machines Ideal For RepRap Ender 3 4 Prusa And 3D Printers And CNC Routers For Makers Projects
Regular price
$59.99
Sale price$88.00you save $28.01

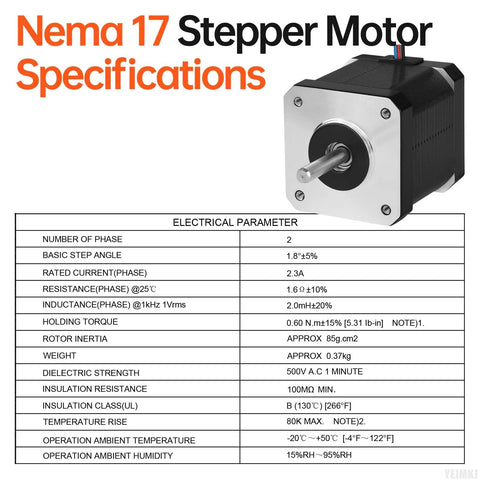

High-Torque NEMA 17 Stepper Motor, 1 Unit, 0.6Nm Torque
✔️ 2-phase bipolar, 1.8° steps; 0.6Nm torque; 2.3A; 1m 4-wire cable
✅ Holding torque 0.6 Nm (84.97 oz-in)
✅ Resistance 1.6 Ω, rated current 2.3 A

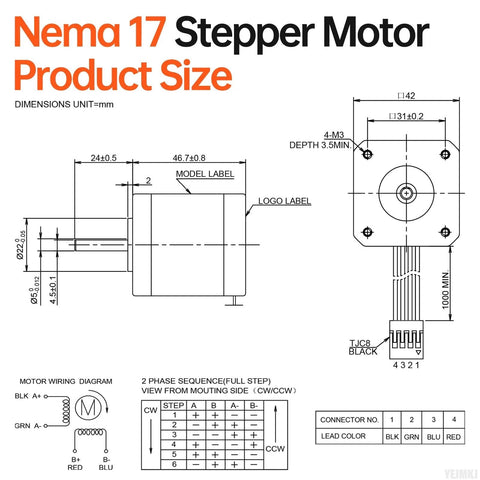

✅ Body size 42×42×46.7 mm (1.66×1.66×1.84 in), weight 368 g
✅ Shaft 5 mm diameter, length 24±0.5 mm, D-cut 24 mm
✅ Cable length 1 m, 4-wire, color coded A+ A- B+ B-
✅ Mounting holes 31 mm spacing, 42 mm square body
✅ Operating temp -20 to +50 C, insulation class B, dielectric strength 500 V AC
✔️ 2-phase bipolar, 1.8° steps; 0.6Nm torque; 2.3A; 1m 4-wire cable
Compact 2-phase NEMA 17 stepper with 0.6 Nm holding torque, built for reliable, quiet operation in tight spaces. Great for RepRap printers, small CNCs, and DIY robots where precise positioning matters.
✅ 2-phase bipolar stepper motor, 1.8° per step✅ Holding torque 0.6 Nm (84.97 oz-in)
✅ Resistance 1.6 Ω, rated current 2.3 A
✅ Body size 42×42×46.7 mm (1.66×1.66×1.84 in), weight 368 g
✅ Shaft 5 mm diameter, length 24±0.5 mm, D-cut 24 mm
✅ Cable length 1 m, 4-wire, color coded A+ A- B+ B-
✅ Mounting holes 31 mm spacing, 42 mm square body
✅ Operating temp -20 to +50 C, insulation class B, dielectric strength 500 V AC
💡 What is a NEMA 17 stepper motor used for in DIY printers and small CNCs?
- Precision control for X/Y axes in 3D printers and small CNCs - Handy for hobbyists building RepRap, Ender, Prusa style machines - Compatible with standard bipolar drivers and 1.8° step angle - Easy wiring: 4-wire, 1m cable and color-coded A+ A- B+ B-
