High Torque Low Speed Hollow Shaft BLDC Motor With External Rotor And MT6701 AS5600 Encoder For Robot Joints Gimbals Robotic Arms And Small Cars 12V 24V 36V Compatible

Single-Unit High Torque Hollow-Shaft BLDC Motor
✔️ 0.12 Nm @12V, 0.3 Nm @24V, MT6701/AS5600 encoders

This high-torque hollow-shaft BLDC motor combines an external rotor with encoder options for precise control in compact robots. It's ideal for robot joints, gimbals, robotic arms, and small automotive projects, operating on 12-36V systems.

✅ 0.12 Nm @12V, 0.3 Nm @24V max torque for strong startup

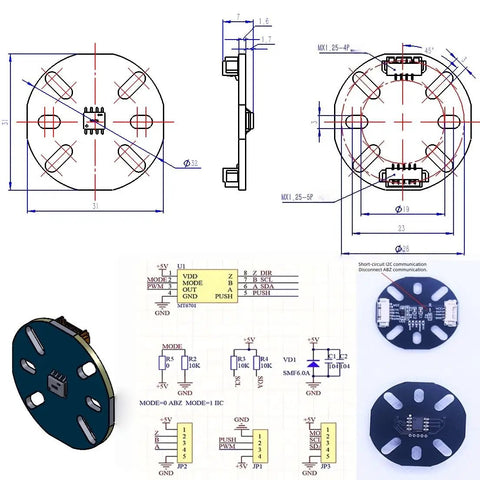

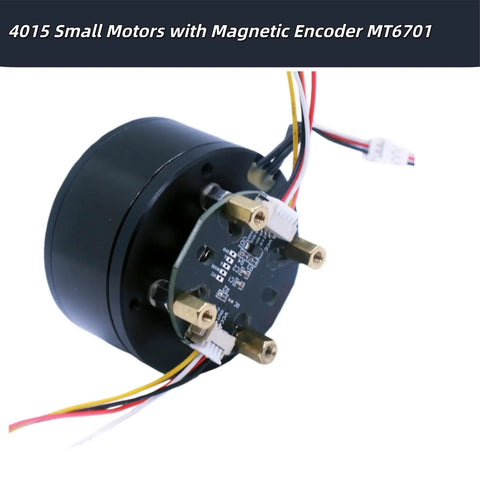

✅ FOC-compatible with MT6701 or AS5600 encoders for precise feedback

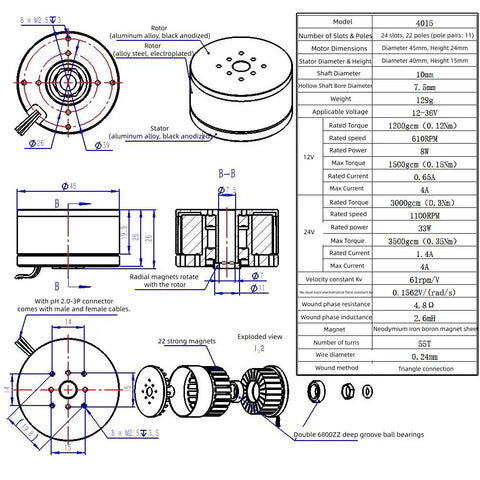

✅ CNC aluminum housing, 24-slot 22-pole stator, robust wiring
✅ 12-36V operation with 610-1100 RPM range depending on voltage
✅ Universal encoder ports and mounting holes for easy integration

💡 What is a pillow block bearing used for in robotics and automation?

They provide sturdy shaft support and alignment in compact robotic systems.

• handy for keeping joints and shafts aligned in small robots
• improves load handling and precision under motion
• works with common motor types and control schemes
• ease of maintenance with replaceable seals and standardized housings
