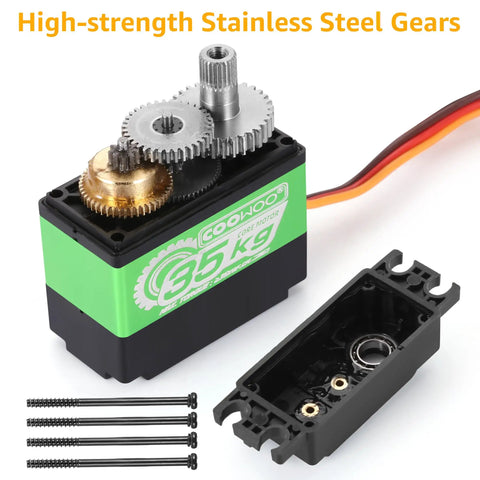

High Torque Coreless Servo With Metal Gear And Stainless Steel Gears 35Kg Torque Fast Steering 0.14 To 0.22 Seconds Per 60 Degrees Digital Arduino Servo For Robotic DIY Projects And RC Cars 10 Degree Control

High Torque Coreless Servo with Metal Gears, 35KG Torque
✔️ 35KG torque, speed 0.14-0.22s/60°, single unit fits 1/8-1/10 RC kits

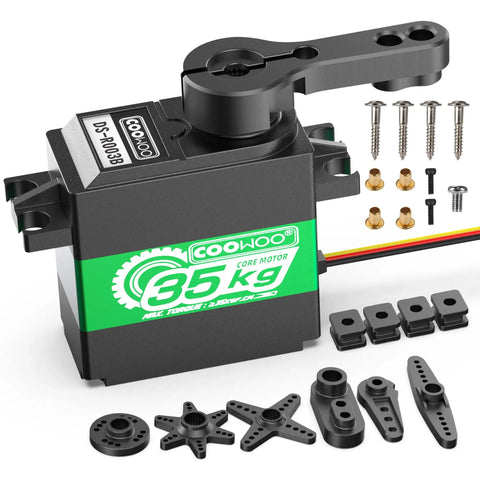

This high-torque coreless servo with metal gears is designed for precise steering in 1/8 and 1/10 scale RC cars, trucks, off-road rigs, and robotic arms. It’s built to withstand rugged use and provides easy direct-fit installation with standard servo systems, including a specially designed aluminum alloy horn for 1/10 TRX-4 or SCX10 RC trucks.

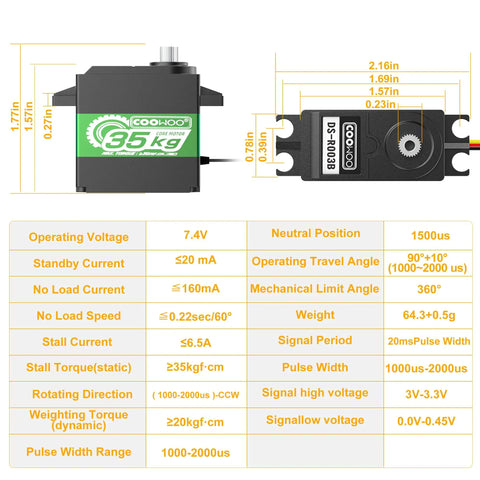

✅ Operating Voltage: 7.4V
✅ Stall Torque: ≥35kgf·cm
✅ No Load Speed: ≤0.22sec/60°
✅ Pulse Width Range: 1000-2000μs
✅ Neutral Position: 1500μs
✅ Travel Angle: 90° ±10°
✅ Mechanical Limit Angle: 360°
✅ Weight: 64.3±0.5 g
✅ Case Material: Metal
✅ Backlash: ≤1°

💡 What is a high torque coreless servo used for in RC projects?

For handy steering and control across RC vehicles and robotics:

- High-torque for heavy front steering on large RC cars - Quick response for precise turns on tight tracks - Durable metal gears for rugged outdoor use
