High Speed Linear Actuator With Reliable 12V DC Muscle And A Smooth 24 Inch Stroke Featuring Rock Solid Ip65 Waterproof Shielding Rated For 176 Pound Loads Built Tough For Any Project
✔️ 24in 600mm stroke extends at 0.78in/sec 176lb load ip65 sealed
You get one solid 12-volt linear actuator plus two mounting brackets right in the box to help you power up your next build. This compact push-rod unit drives smooth force for lifts that stay steady without drifting back down. Aluminum housing shields the internals from rust while the IP65 seal keeps dust and water out during outdoor runs. You can drop this helper into electric bed frames, adjustable desks, or garden gear where quiet operation matters. Plastic gears cut noise below fifty decibels so your mechanism glides without annoying buzz. Five amp draws match standard power supplies, letting you install it quickly across various home or workshop setups.

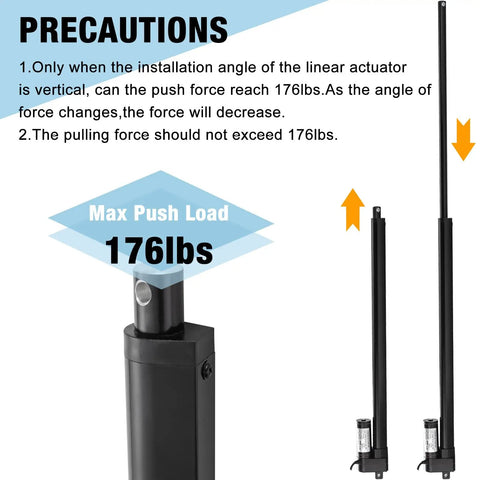

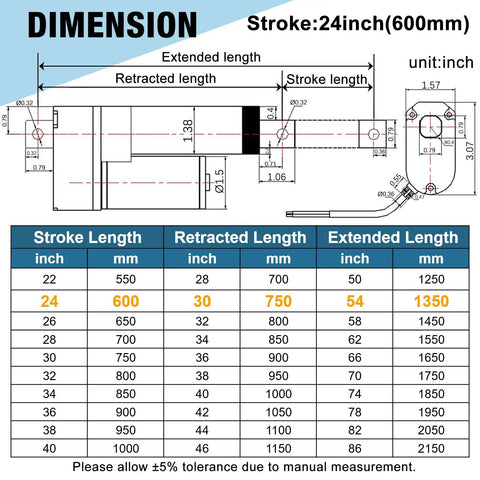

✅ Push rod stretches 24 inch 600 mm from full 30 inch 750 mm retracted position to 54 inch 1350 mm extended length.✅ Handles pushing force up to 176 lb 800 n weight without struggle during heavy lift tasks.
✅ Glides movement at 0.78 inch 20 mm per second for fast reaction time on moving projects.

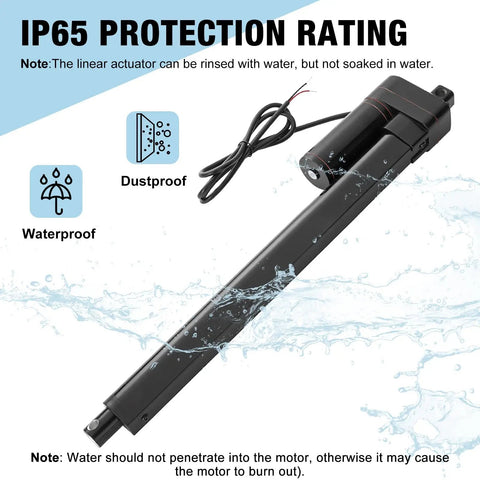

✅ Sealed body resists moisture and dust thanks to ip65 rating covering outdoor or messy work zones.

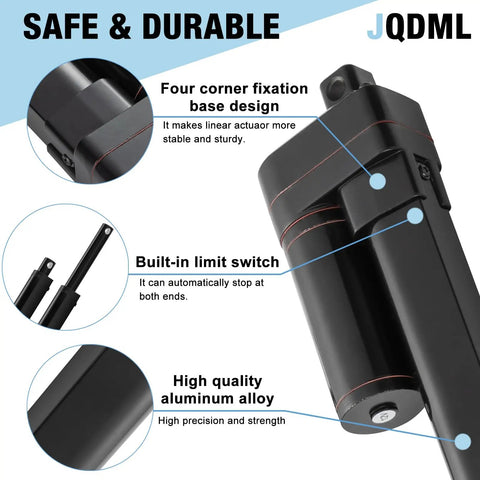

✅ Built-in limit stops halt travel at limits while self-lock feature holds position when power cuts off.
✅ Quiet gears run under 50 db volume keeping environments peaceful during silent operation cycles.
✅ Easy wiring connects to 12 v dc supply drawing only 5 a max amps for simple power needs.

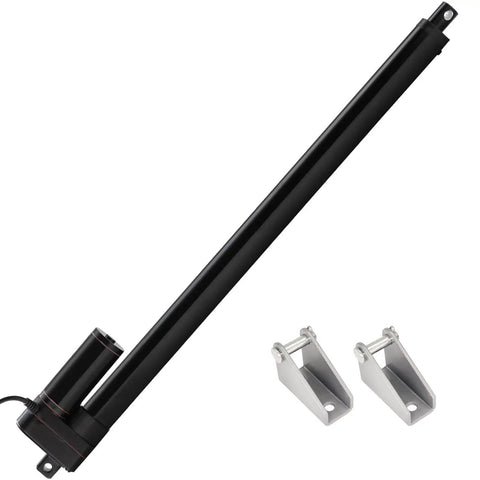

✅ Complete set arrives with single actuator and pair mounts ready for instant installation on frames.
💡 How does a self-locking linear actuator improve safety for vertical lifting applications?
- Screw-nut friction keeps the rod pinned in place without gravity pulling it down during power loss.
- Static holding force offers a handy load alternative by gripping mechanical threads for dependable position control.
- Natural braking action simplifies design cutting costs by removing external clamps from lifting setups.
- Secure grip prevents drift on sloped ramps where uncontrolled slides could damage equipment or cause trouble.
