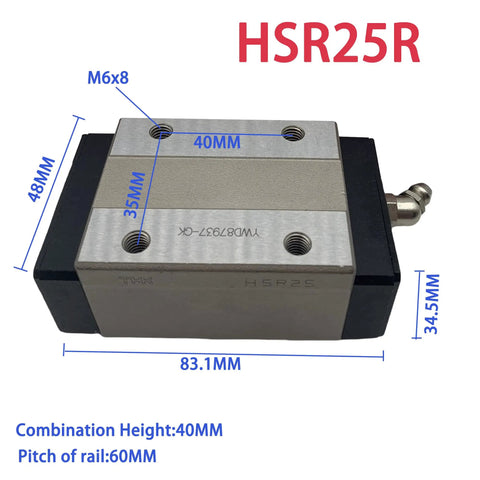

High Precision Linear Guide Rail and Block Set for CNC Machines and 3D Printers HSR25R HSR25R1SS HSR25R1UU HSV15R GK Carriage with Four Row Ball Bearings Endplates for Smooth Motion Control and Accurate Positioning
This high-precision linear guide rail and block set is designed for smooth motion and accurate positioning in CNC machines and 3D printers. It combines an LM rail and an LM block with endplates to keep the balls circulating; retainer plates prevent ball loss even if the rail is pulled out (except models HSR 8, 10 and 12). Each row of balls sits at a 45° angle to spread the load across radial, reverse radial, and lateral directions, enabling use in all orientations. The block supports a well-balanced preload to boost rigidity while maintaining a low friction coefficient. With a low-profile height and high rigidity, it delivers highly accurate, stable straight motion.

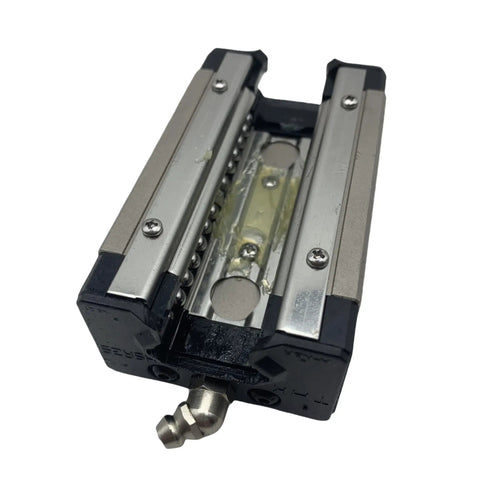

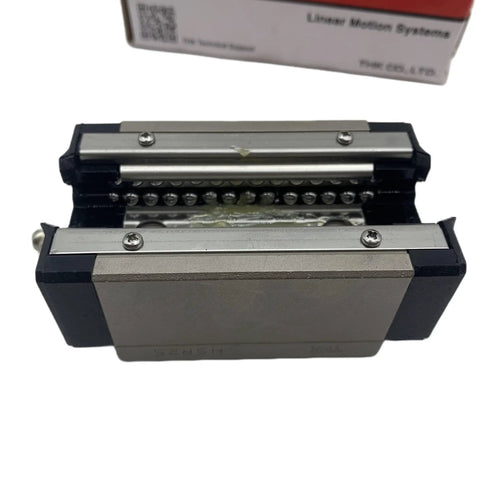

✅ Endplates and retainer plates keep the balls circulating and prevent loss when the rail is removed (except HSR 8, 10, 12).
✅ Four-row ball bearings with a 45° contact angle deliver uniform loads in all directions.
✅ Preload capability increases rigidity while keeping friction low.
✅ Low-profile, high-rigidity design enables precise straight motion.
✅ Compatible carriages include HSR25R, HSR25R1SS, HSR25R1UU, HSV15R GK carriage.
💡 What is a precision linear guide rail and block used for in CNC machines and 3D printers? This setup helps ensure smooth, accurate motion and repeatable positioning across axes. - smooth motion and repeatable positioning for CNC and 3D printing workflows - distributes loads via 45° contact to keep performance consistent - preload increases rigidity while keeping friction low
✝️
