HGW20CC Linear Guideway Workhorse For Heavy Load Flange Block W Mounting Top Or Bottom Light Preload Z0 Normal Precision C With Self Aligning Circular Arc Groove For Smooth High Precision Linear Motion

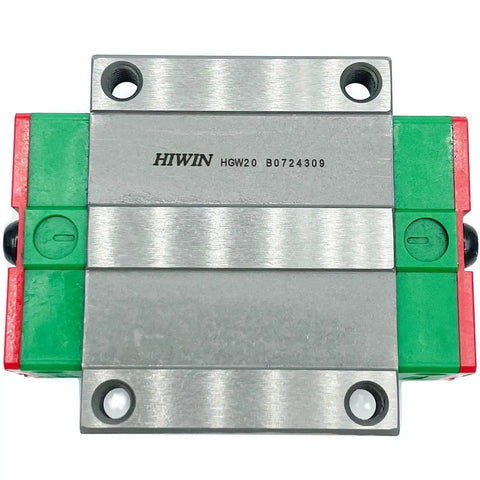

✔️ HGW-20-CC-Z0-C, heavy-load flange block, top or bottom mounting
The HGW-20-CC-Z0-C is a heavy-load flange-type linear guide block for HG Series rails, designed for mounting from either the top or bottom with light preload for smooth motion and reliable alignment.
✅ Self-aligning circular-arc groove with 45-degree contact points
✅ Four-row design provides equal load ratings in radial, reverse radial, and lateral directions
✅ Interchangeability within HG Series maintains dimensional tolerances across blocks and rails
✅ Mounting from top or bottom with light preload Z0 and normal precision C
💡 What is a heavy-load linear guide rail used for, and how does self-aligning circular-arc groove improve accuracy? This handy overview is designed for quick SEO-friendly insight. - Handles high load with stable motion due to four-row contact - Self-aligning groove tolerates mounting errors and surface irregularities - Wide contact width enables high rigidity and smooth operation
✝️
