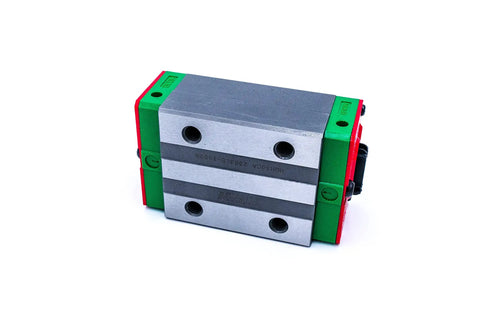

HGH30CA Heavy Load Linear Guideway With Top Mount H Block Square Type Light Preload Z0 Normal Precision C Self Aligning Capability Circular Arc Groove HG Series For Smooth Precise Motion
✔️ Top-mount square H block, light preload Z0, normal precision C, single
The HGH HG Series heavy-load linear guideway is designed for smooth, precise motion in automation and machine tools. The top-mounted H block enables easy mounting in tight spaces and supports robust alignment for accurate positioning across multiple axes.
✅ HG Series four-row design provides equal load ratings in radial, reverse radial, and lateral directions
✅ Circular-arc groove delivers wide contact for high rigidity and large loads
✅ Self-aligning capability mitigates mounting errors for smooth motion
✅ Interchangeability within HG series thanks to tight dimensional control
💡 What is a heavy-load linear guide used for in precision machinery and how does a top-mount H block help?
It provides stable, precise linear movement under heavy loads and can tolerate mounting misalignment.
- high load capacity and accurate positioning- easy top-mount installation reduces setup time
- self-aligning arc-groove design absorbs mounting tolerances
- compatible with other HG series blocks and rails
✝️
