Heavy Duty Universal Indexing Head Rotary Table For Milling Machines Featuring Swappable Dividing Plates And Tailstock Fits 4 5 6 Inch Chucks Dead Nuts Accurate CNC Workhorse Tool

Heavy duty universal rotary milling indexing head tool

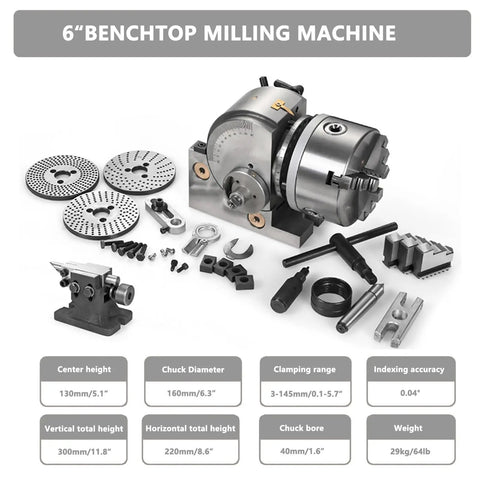

✔️ FC30 cast iron body, 1:40 ratio, secures 4 5 6 inch chucks

This handy equipment converts standard mill beds into precision rotary tables for angular cuts, spring winding, and spline work. Technicians typically bolt it onto compact CNC setups, benchtop drill presses, and horizontal shapers to position irregular blanks without custom fixtures.

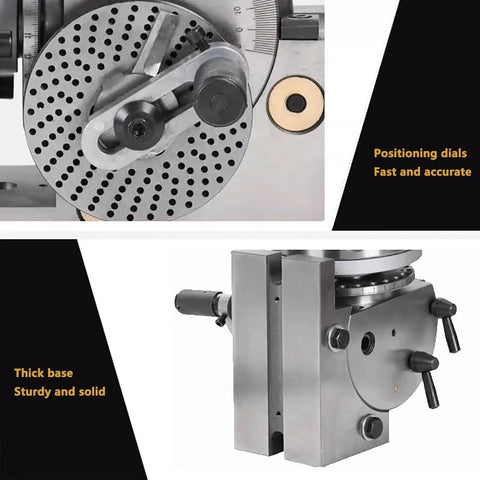

✅ Interchangeable dividing plates feature direct index and multiple hole patterns for exact rotational spacing

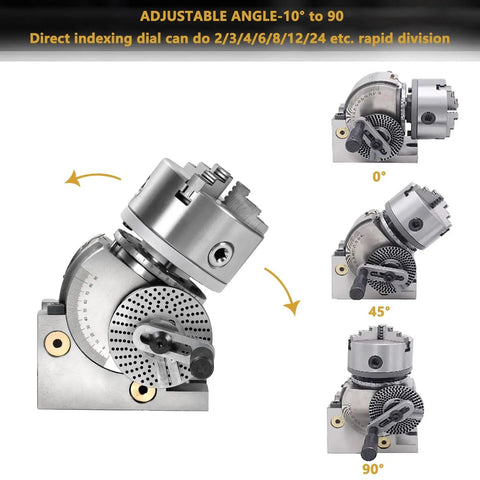

✅ Tiltable headstock rotates from ten degrees below horizontal up to ninety degrees vertical for angled machining

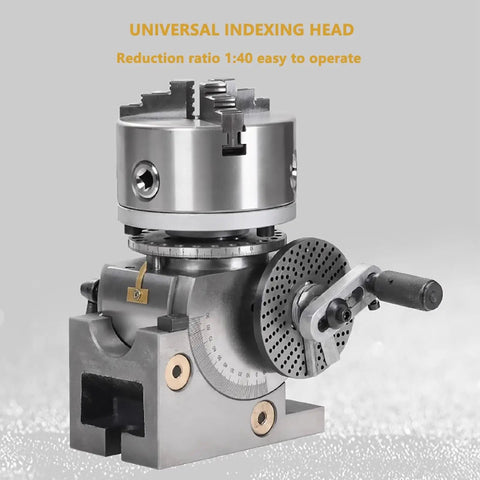

✅ One forty gear reduction delivers precise second degree positioning across standard division counts

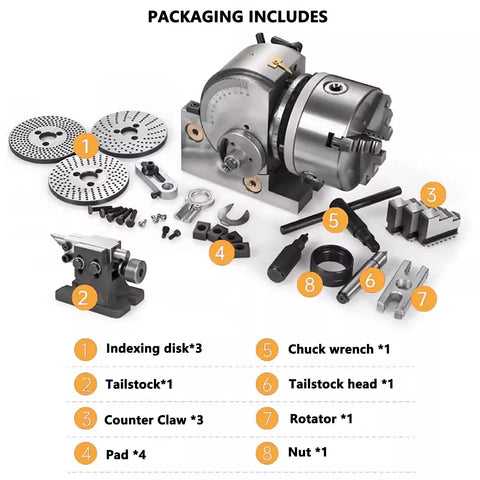

✅ Includes steady rest tailstock to prevent vibration and deflection during lengthy stock cutting runs
✅ Ground spindle interface accepts four five six inch three jaw collets for secure workholding

💡 What controls accurate angular placement during heavy milling operations?
Reliable centering depends on tight mechanical play limits and consistent worm thread geometry across the gear train.
- Match the spindle taper exactly to your arbor style to reduce runout under heavy side load cutting conditions

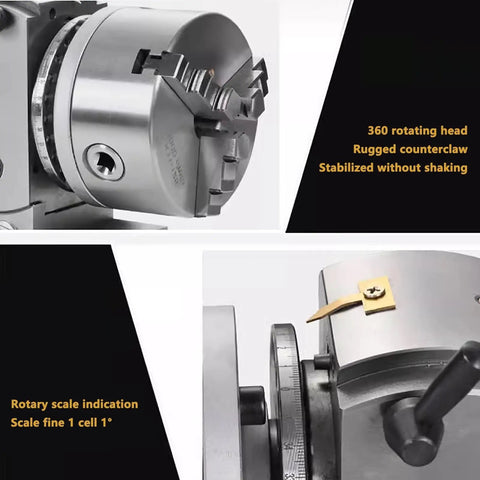

- Dial the concentric reading scale slowly past the target mark then back off to lock exact degree subdivisions cleanly
- Mount the auxiliary support roller near the tool path area to minimize bar flex when removing large chip volumes
- Run light oil through the feed screw channels weekly to prevent dust buildup from slowing micro adjustment turns

✝️
