Heavy Duty Three Pole Industrial Molded Case Circuit Breaker Eight Hundred Amps Four Eighty Six Hundo Thermal Magnetic Trip Nmg Frame G Setup Delivers Reliable Power Flow Without Drama On Demanding Work Sites Nmx3B800
✔️ Siemens 800A Three Pole Molded Case Protecting 65KA Load

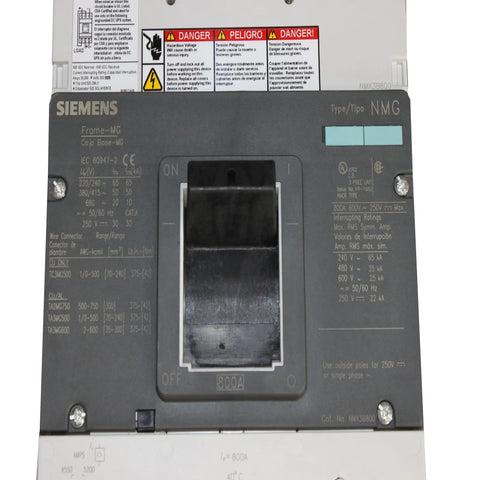

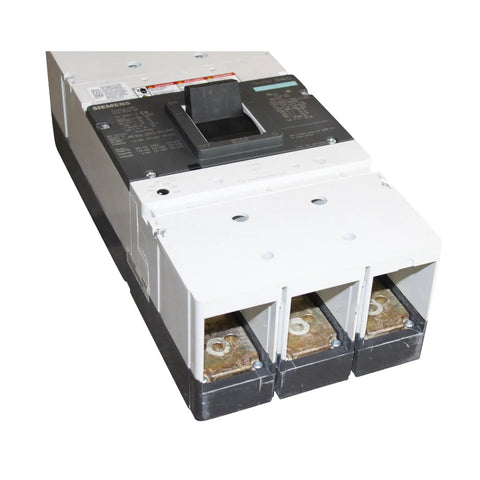

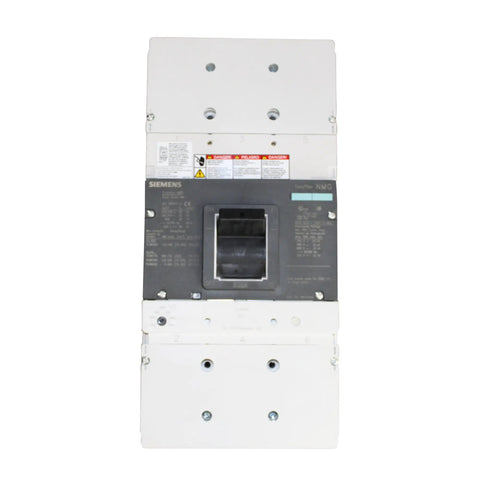

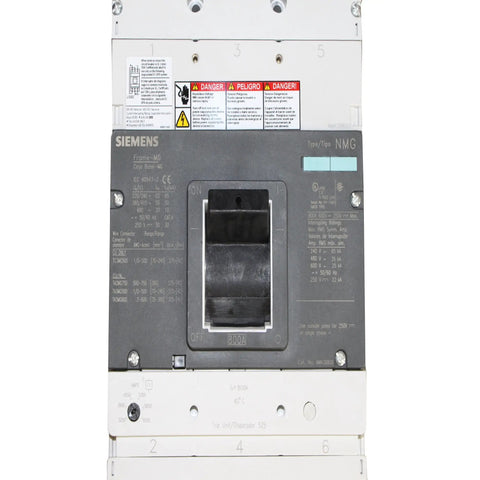

This NMX3B800 thermal magnetic circuit breaker provides dependable overload and short-circuit protection for heavy industrial machinery and commercial power panels. Built with a sturdy gray steel housing, this unit handles demanding electrical loads across manufacturing floors, data centers, and facility upgrade projects where uninterrupted energy distribution matters most.
✅ Three pole configuration handling up to 800 amperes continuously✅ Adjustable magnetic trip range spanning 3250 to 6500 amps
✅ Rated for 240 to 600 volt ac systems plus 500 vdc circuits
✅ Maximum 65 ka interrupting capacity at lower voltage thresholds
✅ Compact footprint measuring 7.5 x 5.9 x 16 inches tall
✅ Designed for motor generators and switchgear installations
💡 How do you pick the right three pole breaker for high current panels
Keeping your shop running smooth when wiring up new gear is pretty handy once you dial in the exact load ratings.
- Match continuous amperage to main bus capacity to prevent nuisance trips during startup surges
- Verify interrupting scores align with upstream transformer limits to keep operations safe and sound
- Select thermal magnetic styles for equipment that houses motors and heavy compressors
- Frame depth and wire termination sizes must fit your existing panel layout comfortably
