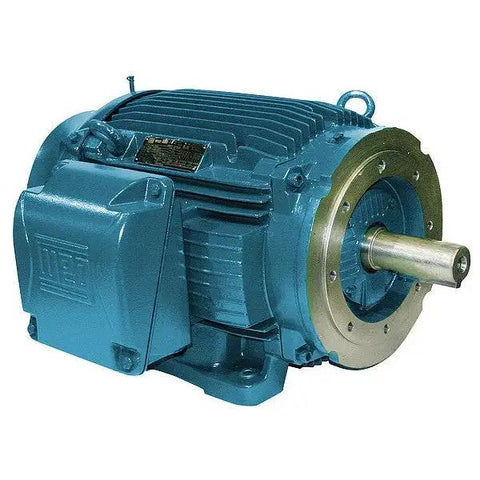

Heavy Duty Three Phase General Purpose Motor 15 HP TEFC 1765 RPM 254/6TC Frame 230/460V 60 Hz Industrial Grade With Rigid Base And C Face Mount Full Load Amps 36/18 A No Thermal Protection
✔️ 15 HP TEFC motor, 1765 RPM, 254/6TC frame, 230/460V, 60 Hz, SF 1.25
This heavy-duty three-phase general purpose motor uses a Totally Enclosed Fan Cooled (TEFC) design, built for industrial duty. It comes with a rigid base and C-face mounting, ideal for bolting into conveyors, pumps, fans, and other equipment on factory floors.
✅ 15 HP output, continuous duty
✅ TEFC enclosure with Class F insulation
✅ Frame 254/6TC, rugged cast iron housing for rigidity
✅ 230/460V, 60 Hz, three-phase operation
✅ Full load amps 36.0/18.0 A, service factor 1.25
✅ Rigid base and C-face mounting
✅ Ball bearings for long life, ambient up to 40°C
✅ CW/CCW rotation options
💡 What is a general purpose motor used for in industrial settings? This handy drive powers a wide range of equipment on production lines. - Typical applications include pumps, fans, conveyors, and grinders. - TEFC enclosure and Class F insulation help withstand dusty or humid factory spaces. - Service Factor 1.25 supports brief overloads and longer life. - Compatible with standard controls and VFDs for easy automation.
