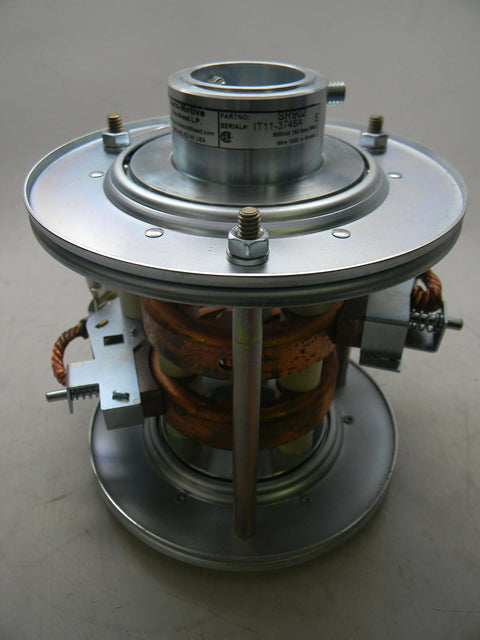

Heavy Duty Slip Ring Assembly Built To Last Self Contained Air Gap With Two Conductors 200 Amp Continuous Duty 600 Volt Rating 1.5 Inch Diameter 200 RPM Max 0.31 To 1 AWG Wire Size SR902

Heavy-Duty Self-Contained Slip Ring, 200A/600V SR902, Single
✔️ 200A cont. duty, 2-conductor, 600V, 1.5in dia, 200RPM

The SR902 is a heavy-duty slip ring assembly with a self-contained air gap, designed for continuous electrical transfer in rotating equipment. It's ideal for industrial machines, robotic arms, and automated systems that require reliable power delivery through rotation.

✅ 200 Amp continuous duty
✅ 2-conductor / 600V rating
✅ 38.10 mm (1.500 in) diameter
✅ Maximum 200 RPM
✅ Wire size 0.31 to 1 AWG
✅ Self-contained air gap design

💡 What is a slip ring assembly used for in rotating machinery?

Used to transfer power and signals across a rotating interface, keeping wires from tangling and enabling continuous operation. - Transfers power and data through rotating interfaces in robotics and automation
- Sealed air gap design protects against shorts in harsh environments
- Handles high current like 200A and voltages up to 600V for heavy-duty gear
- Compatible with two-conductor configurations for simple, rugged installs
