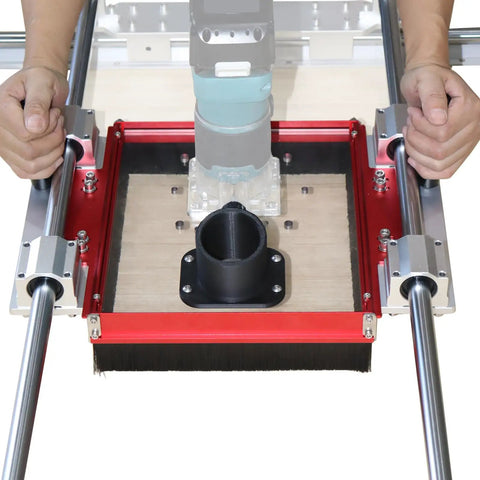

Heavy Duty Router Sled Slide Connector With Killer Dust Control For 20mm Linear Rails And Sbr20uu Scs20uu Slides Slick Acrylic Base Plate For Smooth Slab Flatteners
✔️ 20mm linear slide mount featuring heavy duty dust port
This handy carriage connector links standard linear shaft assemblies to flat sliding platforms. Woodworkers mount it on custom sled frames to evenly flatten rough maple slabs or resurface wide pine boards.

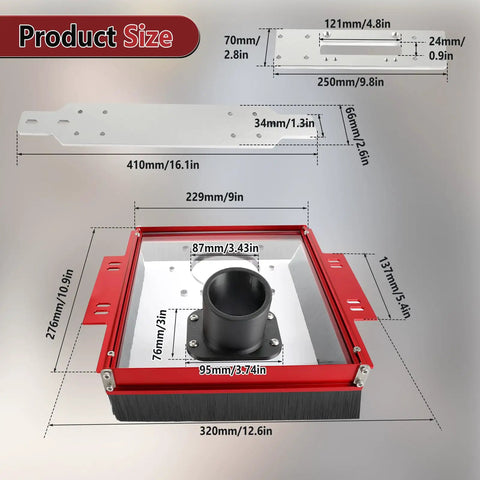

✅ Aluminum housing supports frequent shop movement✅ Fits bearing blocks measuring 27.27 to 30.44 cm (roughly 10.6 to 11.8 inches) wide

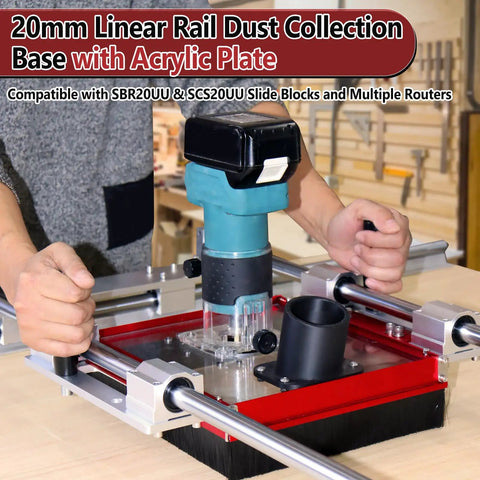

✅ Mounts directly to predrilled acrylic router plates

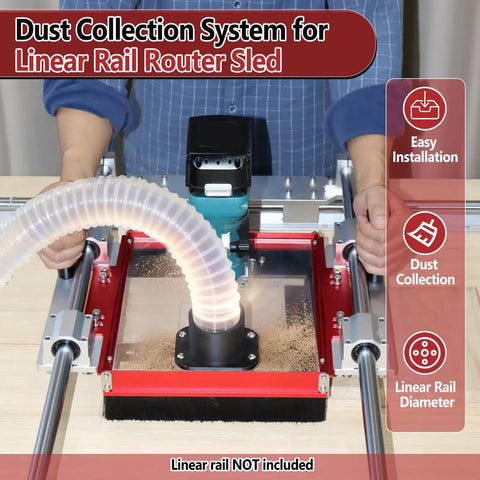

✅ Captures ninety percent of sawdust through 2.5 inch nozzle

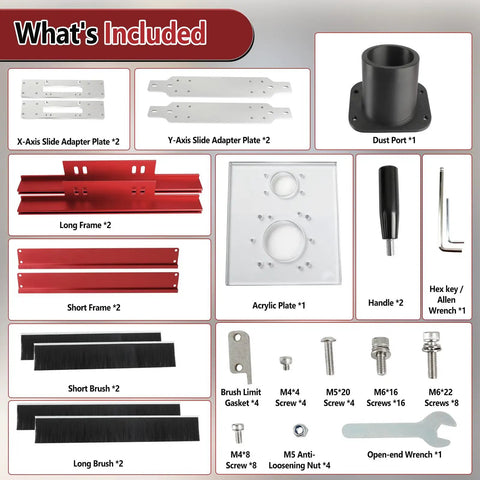

✅ Ships as one standalone carriage unit without rails

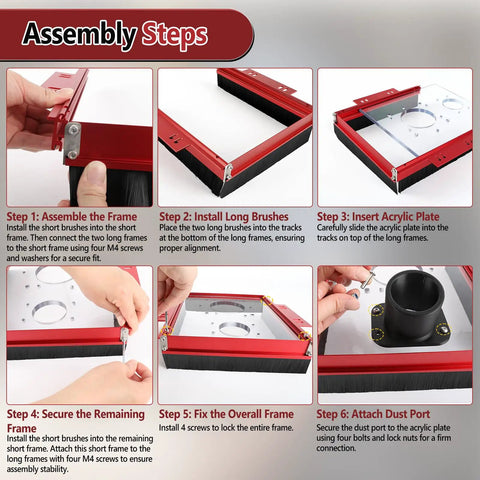

💡 How do I assemble a rigid linear guide carriage for precision timber surfacing?
Most shop users grab a carriage plate connector when they need steady side-to-side movement for their benchtop cutters.

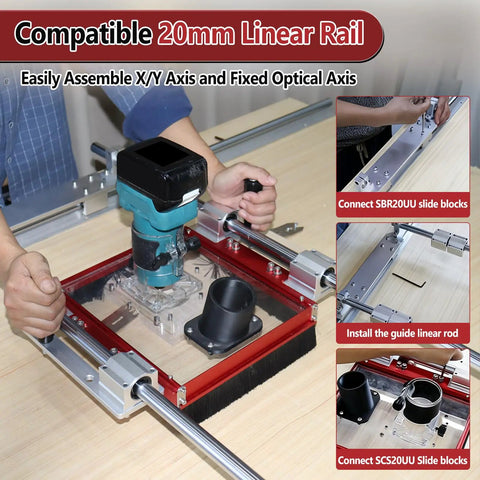

- Hook two smooth guide shafts into the sliding mounts and tighten everything down before heading over to the bench
- Bolt your favorite handheld router under the acrylic plate so the bits spin perfectly over the timber
- Push the frame back and forth slowly while the attached hose sucks up all the loose sawdust
- Dial in the height setting and run multiple light passes until the board comes out dead flat
