Heavy Duty Reverse Dial Indicator Shaft Alignment Tool Set Built For Those Awkwardly Tight Gearboxes And Hubs Up To 2.8 Inches With Shop Floor Grit And No Mess Precision That Beats Fancy Lasers Dead

Precision reverse dial indicator shaft alignment tool kit
✔️ Mounts on hub shafts under 28 inches needing three inch clearance

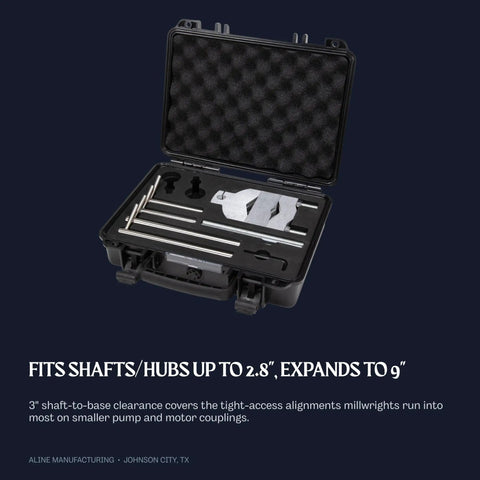

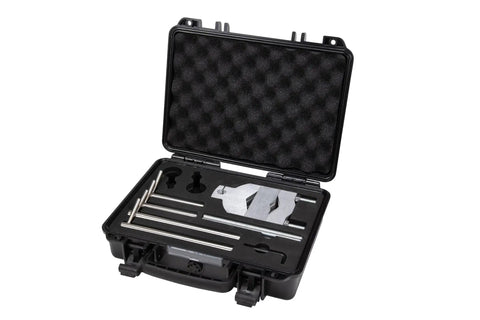

This dedicated alignment base kit helps maintenance crews correct misaligned drive components in compact industrial setups. Mechanics install the sturdy mounting rig around rotating couplings or gearbox housings to capture angular and parallel offsets without blocking nearby structural beams. Sold as a complete single-base assembly excluding dial indicators, the package delivers everything needed for immediate shop installation.

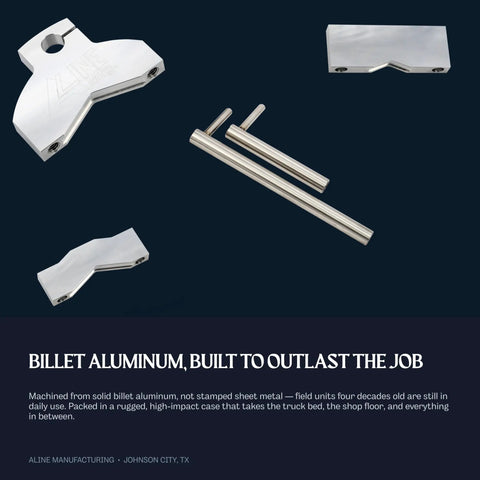

✅ Solid billet aluminum body resists impacts and outlasts stamped metal alternatives across heavy shift schedules
✅ Three curved contact plates lock firmly against irregular housing contours for stable gauge positioning
✅ Integrates seamlessly with common Starrett model 196B1 dial indicators for confirmed measurement feedback
✅ Compact three inch rotational footprint slips easily into tight machinery frames where bulky rigs simply jam

💡 What steps do technicians follow when lining up hidden drive shafts in confined compressor bays?
- Seat the alignment bracket flat against the coupling housing while keeping the dial needle perfectly horizontal
- Rotate both shaft assemblies steadily until the reverse face settles within acceptable tolerance limits for smooth torque transmission
- Shift adjusting screws gradually to remove shaft wobble while capturing actual mechanical drift that cheap digital probes often overlook
- This manual measurement routine stays handy when electronic gadgets get tripped up by shop grit and thick steel casings

✝️
