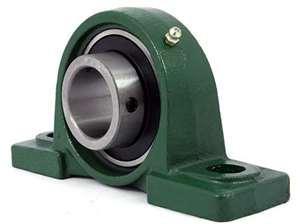

Heavy Duty Pillow Block UCP322 Bore 110mm

Item: UCP322 Bearing
Type: Heavy Duty Pillow Block
Bore: 110mm
Bearing No.: UC322
Bolt Size: M33
Heavy Duty Pillow Block UCP322
Pillow Block Bearing
Cylindrical bore (with set screws)
110mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP322 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 110mm
  • Bolt Size: M33
  • Bearing No: UC322
  • Basic Load (Cr): 205 KN
  • Dynamic Load (Cr): 180 KN
  • Quantity: One Bearing

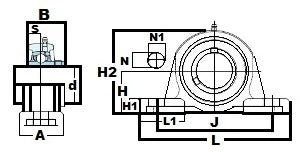

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
110mm 150 520 140 400 40 55 50 296 150 46
