Heavy Duty Pillow Block UCP320 Bore 100mm

Item: UCP320 Bearing
Type: Heavy Duty Pillow Block
Bore: 100mm
Bearing No.: UC320
Bolt Size: M30
Heavy Duty Pillow Block UCP320
Pillow Block Bearing
Cylindrical bore (with set screws)
100mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP320 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 100mm
  • Bolt Size: M30
  • Bearing No: UC320
  • Basic Load (Cr): 173 KN
  • Dynamic Load (Cr): 141 KN
  • Quantity: One Bearing

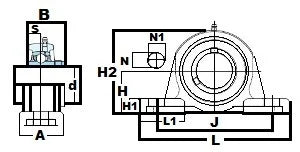

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
100mm 140 490 120 380 36 50 46 273 140 42
