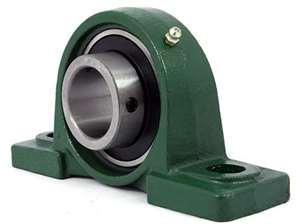

Heavy Duty Pillow Block UCP318 Bore 90mm
✔️ Heavy duty pillow block with set screws, 90mm bore, UC318, single unit
This heavy duty pillow block houses a UC318 mounted ball bearing with a cylindrical bore of 90 mm and set screws for shaft retention. It is designed for rugged industrial setups like conveyors, mixers, and presses, delivering stable support under heavy loads. Cast steel housing and a rib at the bottom enhance rigidity to handle shock and direction changes. The unit uses M27 bolts for mounting and ships as a single piece.
✅ Bore Dia: 90 mm
✅ Bearing: UC318 mounted ball bearing
✅ Bolt Size: M27
✅ Basic Load (Cr): 143 kN
✅ Dynamic Load (Cr): 107 kN
✅ Housing Material: Cast steel
✅ Quantity: 1

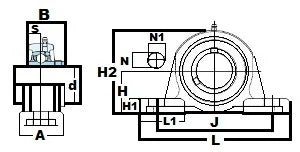

✅ Dimensions (mm): d=90, H=118, L=430, A=110, J=330, N=33, N1=45, H1=40, H2=234, L1=120, S=40
💡 What is a pillow block bearing used for in heavy duty machinery and how do I pick the right one for a 90 mm bore UC318 housing? This handy guide breaks down how to assess needs. - 90 mm bore with UC318 ball bearing - Cast steel housing with ribbed base for high loads - Set screws and M27 mounting bolts for secure shaft retention - Key specs to compare: Basic Load 143 kN, Dynamic 107 kN
