Heavy Duty Pillow Block UCP316 Bore 80mm

Heavy Duty Pillow Block Bearing with 80mm Bore UCP316
✔️ Cylindrical bore with set screws, 80 mm ID, rugged housing, 1 pc

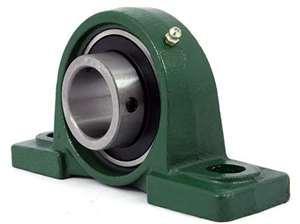

Heavy Duty UCP316 pillow block bearing accepts a cylindrical shaft and mounts with a robust cast steel housing. This unit uses a standard 80 mm bore and set screws to secure the shaft, making it common in heavy machinery, conveyors, and material handling equipment.

✅ Bore dia: 80 mm with cylindrical bore and set screws
✅ Bolt size: M22
✅ Basic load Cr: 123 kN; Dynamic load Cr: 86.7 kN
✅ Housing: cast steel rugged body with bottom rib for strength

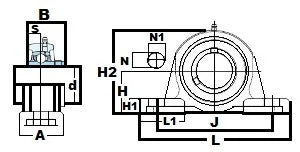

Dimension	Value
d	80 mm
H	106 mm
L	400 mm
A	110 mm
J	300 mm
N	27 mm
N1	40 mm
H1	35 mm
H2	209 mm
L1	120 mm
S	34 mm

💡 What is a heavy duty pillow block bearing with UC316 bore 80 mm used for in industrial setups?

These units stabilize rotating shafts in tough industrial environments.

- Supports rotating shafts in conveyors and drive systems - Fits 80 mm bore with set screws for secure clamping - Rugged cast steel housing resists shock and misalignment - UC316 mounted ball bearing provides reliable service life✝️

Heavy Duty Pillow Block UCP316 Pillow Block Bearing Cylindrical bore (with set screws) 80mm Inner Diameter

Dimensions (mm) d H L A J N N1 H1 H2 L1 S 80mm 106 400 110 300 27 40 35 209 120 34
