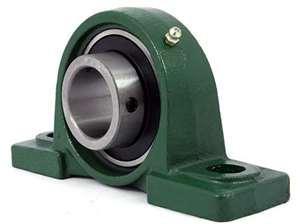

Heavy Duty Pillow Block UCP315 Bore 75mm

Item: UCP315 Bearing
Type: Heavy Duty Pillow Block
Bore: 75mm
Bearing No.: UC315
Bolt Size: M22
Heavy Duty Pillow Block UCP315
Pillow Block Bearing
Cylindrical bore (with set screws)
75mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP315 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 75mm
  • Bolt Size: M22
  • Bearing No: UC315
  • Basic Load (Cr): 113 KN
  • Dynamic Load (Cr): 77.2 KN
  • Quantity: One Bearing

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
75mm 100 380 100 290 27 40 35 198 107 32
