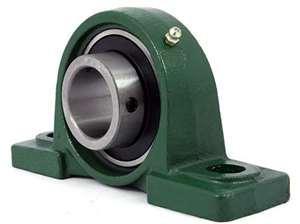

Heavy Duty Pillow Block UCP314 Bore 70mm

Item: UCP314 Bearing
Type: Heavy Duty Pillow Block
Bore: 70mm
Bearing No.: UC314
Bolt Size: M22
Heavy Duty Pillow Block UCP314
Pillow Block Bearing
Cylindrical bore (with set screws)
70mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP314 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 70mm
  • Bolt Size: M22
  • Bearing No: UC314
  • Basic Load (Cr): 104 KN
  • Dynamic Load (Cr): 68.2 KN
  • Quantity: One Bearing

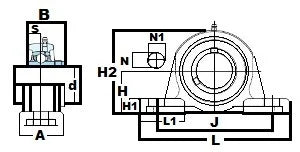

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
70mm 95 360 90 280 27 40 35 186 110 33
