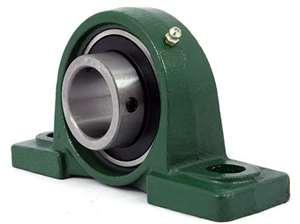

Heavy Duty Pillow Block UCP313 Bore 65mm

Item: UCP313 Bearing
Type: Heavy Duty Pillow Block
Bore: 65mm
Bearing No.: UC313
Bolt Size: M20
Heavy Duty Pillow Block UCP313
Pillow Block Bearing
Cylindrical bore (with set screws)
65mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP313 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 65mm
  • Bolt Size: M20
  • Bearing No: UC313
  • Basic Load (Cr): 92.7 KN
  • Dynamic Load (Cr): 59.9 KN
  • Quantity: One Bearing

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
65mm 90 340 90 260 25 38 32 176 110 30
