Heavy Duty Pillow Block UCP311 Bore 55mm

Item: UCP311 Bearing
Type: Heavy Duty Pillow Block
Bore: 55mm
Bearing No.: UC311
Bolt Size: M16
Heavy Duty Pillow Block UCP311
Pillow Block Bearing
Cylindrical bore (with set screws)
55mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP311 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 55mm
  • Bolt Size: M16
  • Bearing No: UC311
  • Basic Load (Cr): 71.6 KN
  • Dynamic Load (Cr): 45 KN
  • Quantity: One Bearing

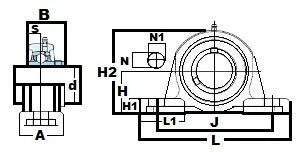

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
55mm 80 310 80 236 20 38 27 158 90 25
