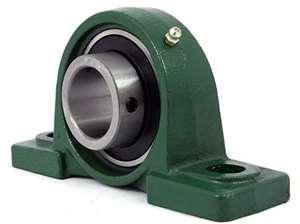

Heavy Duty Pillow Block UCP308 Bore 40mm

Item: UCP308 Bearing
Type: Heavy Duty Pillow Block
Bore: 40mm
Bearing No.: UC308
Bolt Size: M14
Heavy Duty Pillow Block UCP308
Pillow Block Bearing
Cylindrical bore (with set screws)
40mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP308 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 40mm
  • Bolt Size: M14
  • Bearing No: UC308
  • Basic Load (Cr): 40.7 KN
  • Dynamic Load (Cr): 24 KN
  • Quantity: One Bearing

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
40mm 60 220 60 170 17 27 19 118 65 19
