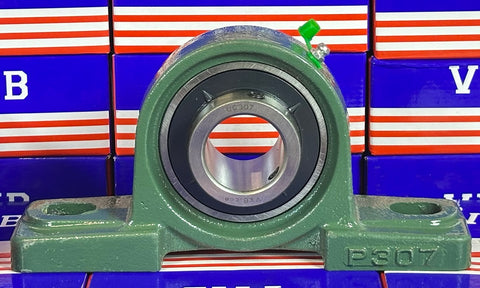

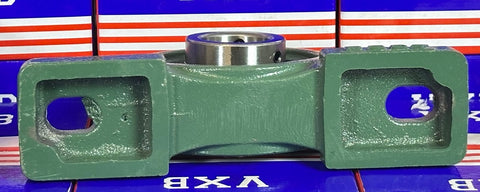

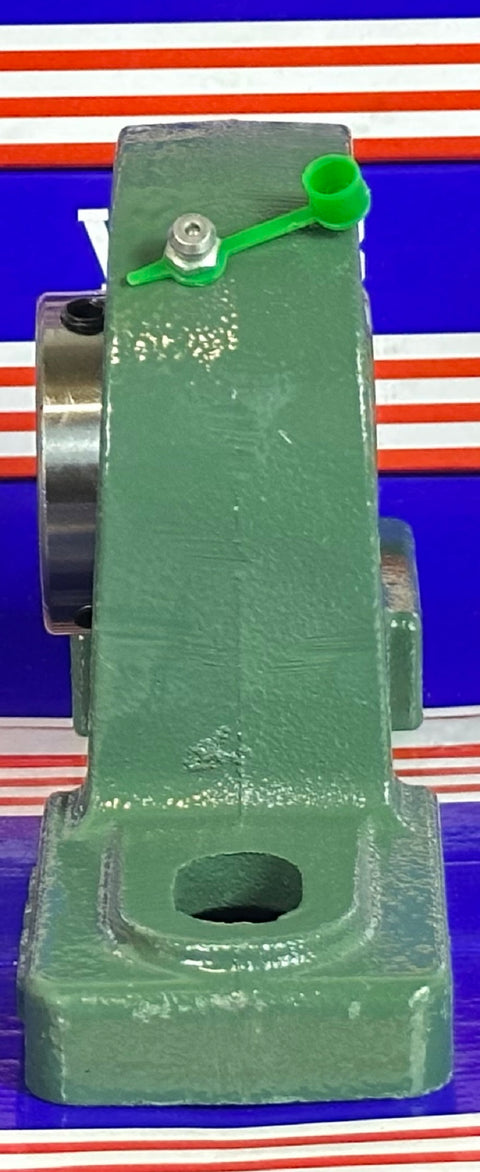

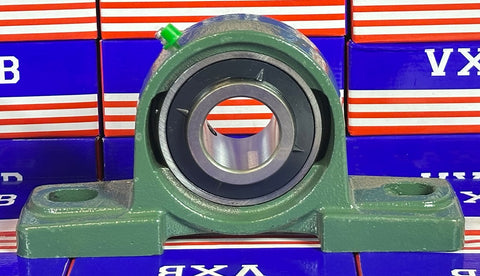

Heavy Duty Pillow Block UCP307 Bore 35mm

Item: UCP307 Bearing
Type: Heavy Duty Pillow Block
Bore: 35mm
Bearing No.: UC307
Bolt Size: M14
Heavy Duty Pillow Block UCP307
Pillow Block Bearing
Cylindrical bore (with set screws)
35mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP307 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 35mm
  • Bolt Size: M14
  • Bearing No: UC307
  • Basic Load (Cr): 33.4 KN
  • Dynamic Load (Cr): 19.3 KN
  • Quantity: One Bearing

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
35mm 210 56 160 17 25 19 107 65 48 19
