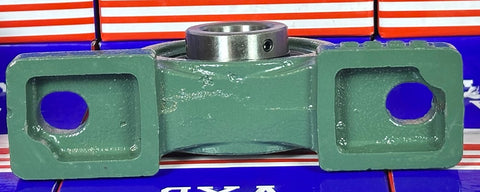

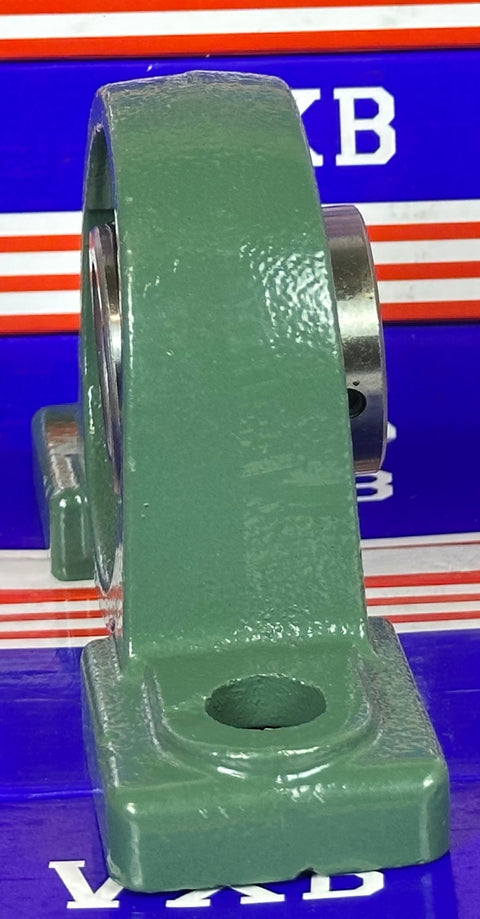

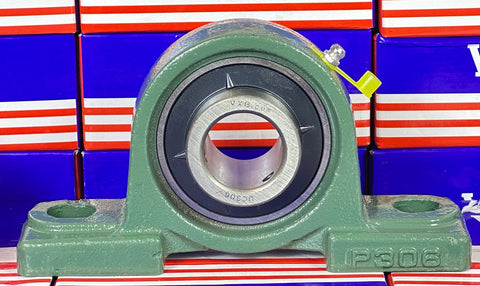

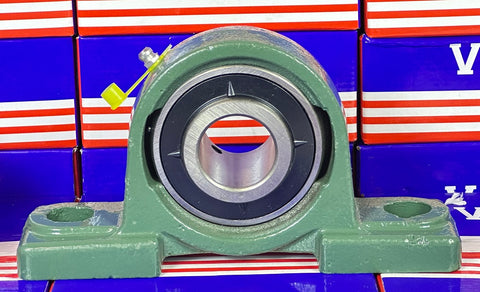

Heavy Duty Pillow Block UCP306 Bore 30mm

Item: UCP306 Bearing
Type: Heavy Duty Pillow Block
Bore: 30mm
Bearing No.: UC306
Bolt Size: M14
Heavy Duty Pillow Block UCP306
Pillow Block Bearing
Cylindrical bore (with set screws)
30mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP306 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 30mm
  • Bolt Size: M14
  • Bearing No: UC306
  • Basic Load (Cr): 26.7 KN
  • Dynamic Load (Cr): 15 KN
  • Quantity: One Bearing

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
30mm 50 180 50 140 17 20 17 95 53 17
