Heavy Duty Pillow Block UCP305 Bore 25mm

Item: UCP305 Bearing
Type: Heavy Duty Pillow Block
Bore: 25mm
Bearing No.: UC305
Bolt Size: M14
Heavy Duty Pillow Block UCP305
Pillow Block Bearing
Cylindrical bore (with set screws)
25mm Inner Diameter

This is the most common type of Heavy Duty mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Heavy Duty Mounted units with cast steel housings are also available in this seriesand are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: Heavy Duty UCP305 Bearing
  • Type: Mounted Ball Bearing
  • Bore Dia: 25mm
  • Bolt Size: M14
  • Bearing No: UC305
  • Basic Load (Cr): 21.2 KN
  • Dynamic Load (Cr): 10.9 KN
  • Quantity: One Bearing

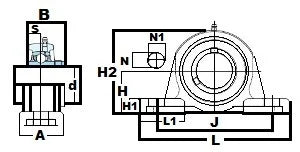

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
25mm 45 175 45 132 17 20 16 85 55 15
