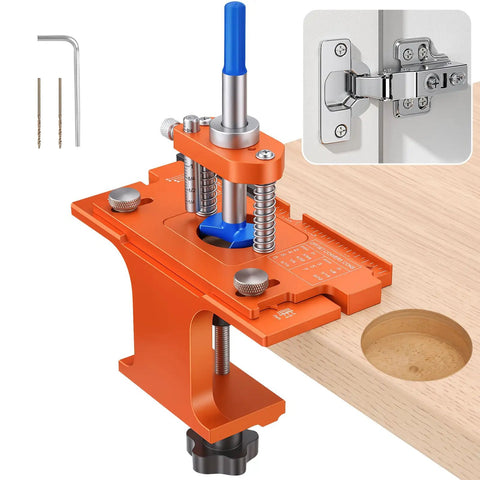

Heavy Duty Metal Concealed Hinge Jig For Cabinet Doors With Integrated 35mm Carbide Drill Bit And Dual Bearing Guide For Dead On Accurate Alignment That Knocks Out Smooth Hinge Cutouts Fast With Rock Solid Aluminum Frame Design
✔️ 35mm carbide bit, dual bearing guide, 50mm grip, adjustable stop

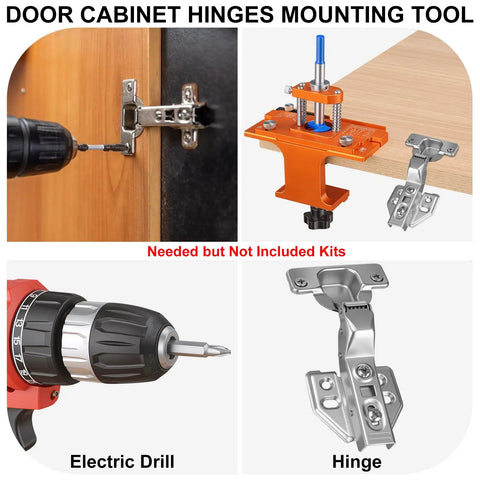

This concealed hinge drilling jig helps woodworkers and DIYers mount European style cabinet doors without guesswork. It attaches securely to door panels up to 50 mm thick and works on standard plywood, MDF, and solid wood panels found in kitchen cabinetry, bathroom vanities, and commercial shelving units.

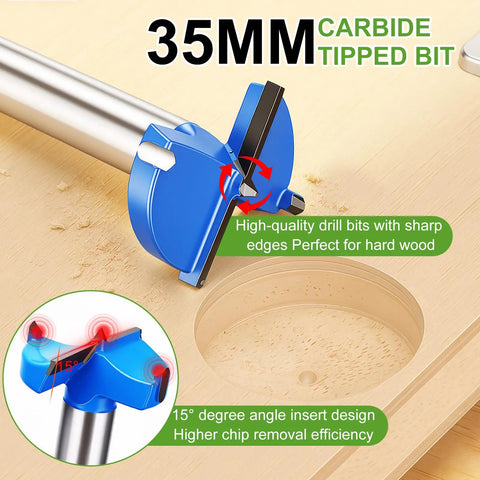

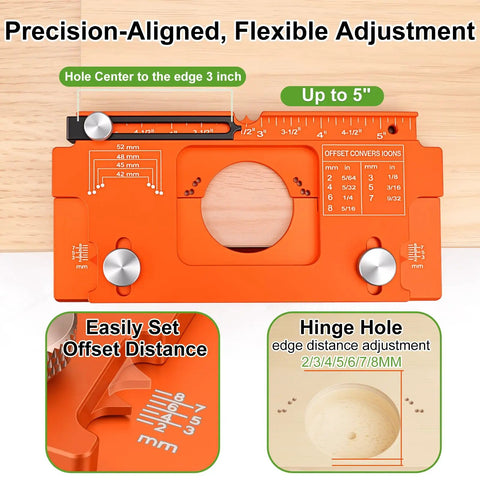

✅ 35mm integrated carbide-tipped drill bit clears waste cleanly✅ Lateral offset adjusts 2 to 8 mm and 0.08 to 0.31 inch for precise placement
✅ Flexible edge tracking moves up to 5 inch and 127 mm to follow any panel width

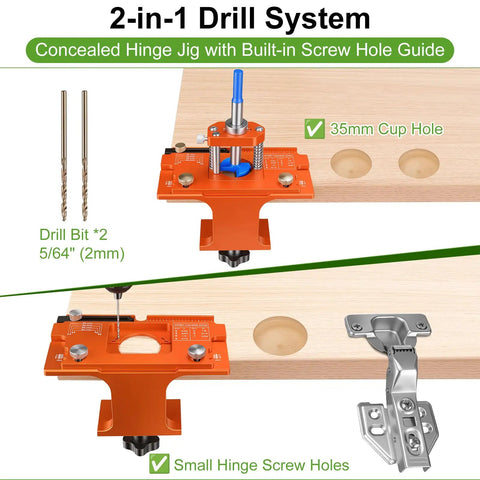

✅ Compatible with 42×11 mm, 48×6 mm, 52×5.5 mm, and 45×9.5 mm bore patterns
✅ Depth control manages wood thickness from 12 to 25 mm and 0.47 to 0.98 inch
✅ Jaw grip secures material up to 50 mm and 1.97 inch thick without slipping

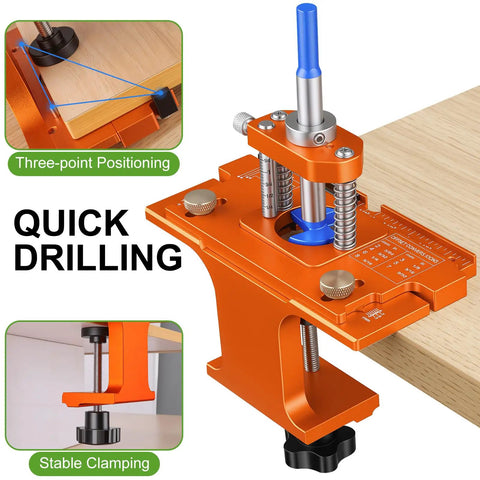

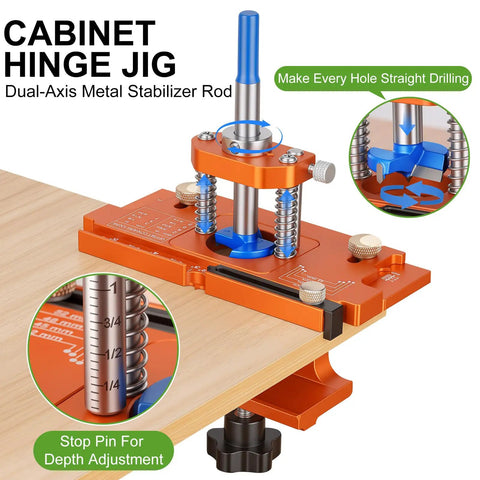

💡 What is the standard method for drilling repeatable holes in concealed cabinet hinges? You can skip the trial and error by locking the depth stop and setting the lateral offset ahead of time. - Set the dial collar to your exact board thickness so the carbide tip halts exactly where needed - Slide the guide tracks over your target hinge spacing to lock in repeatable centerline accuracy - Tighten the rotating clamp against the door edge to kill wobble while you turn the feed handle - Keep backup guide pins handy for quick changes when switching between different overlay measurements
✝️
