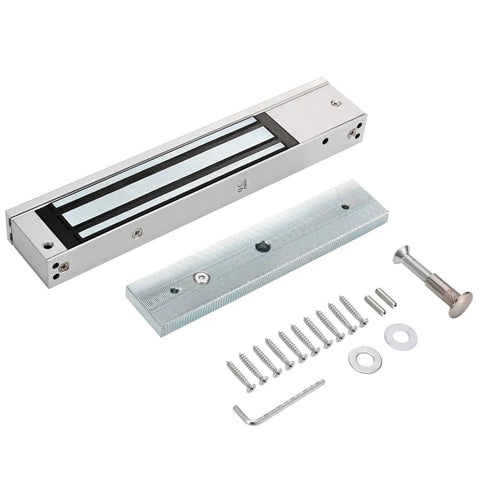

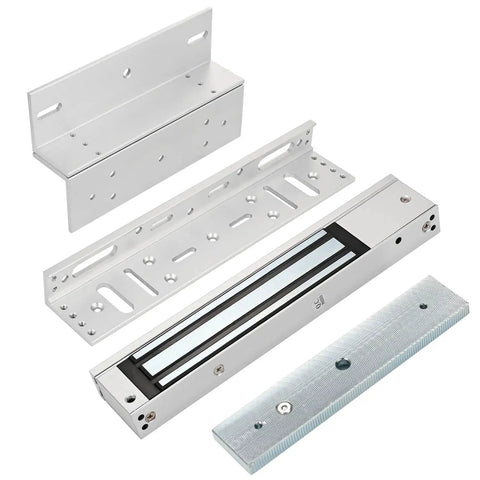

Heavy Duty Magnetic Door Lock With Z And L Brackets Built Tough, 600 Pounds Holding Force, 12V Fail Safe NC, Stainless Steel Body For Access Control System, Easy Install For Secure Entry

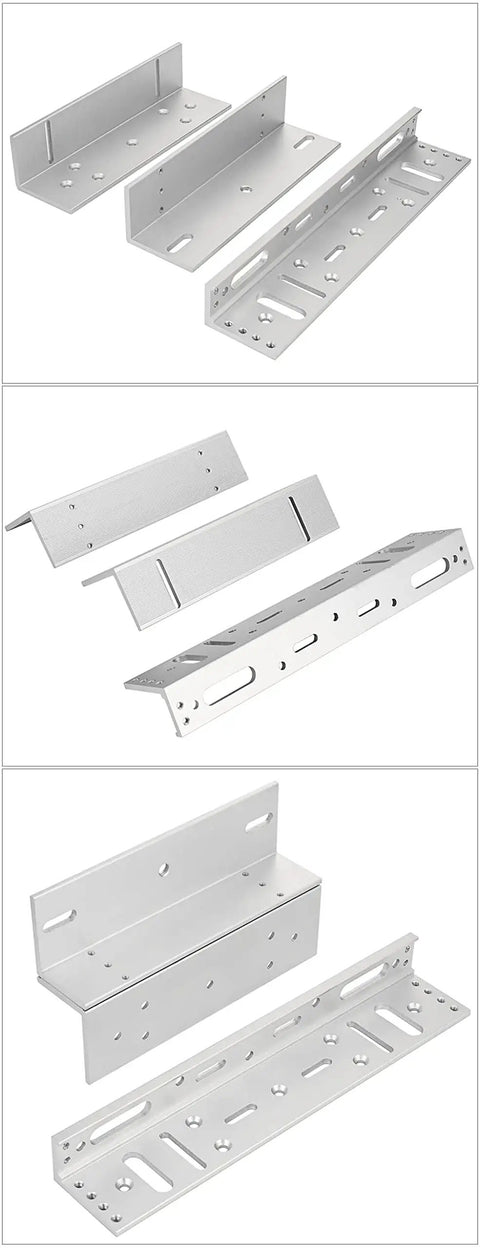

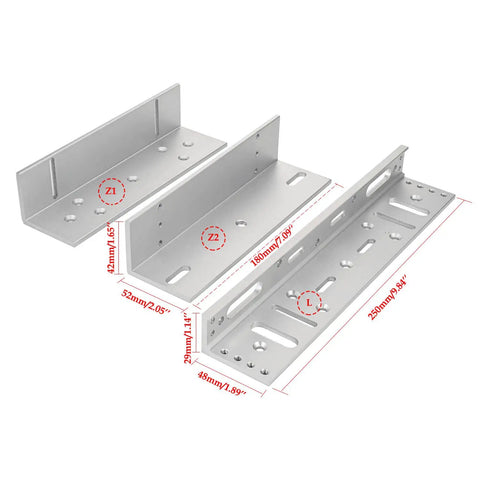

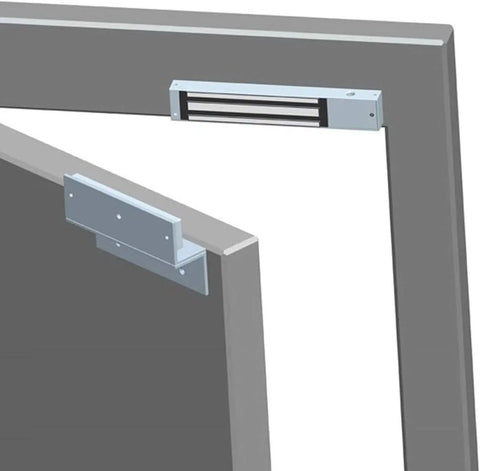

This heavy duty electromagnetic door lock delivers a reliable, secure entry control solution for commercial spaces. It is suitable for wooden, metal, and glass doors and comes with mounting options via Z and L brackets for flexible installation. The NC fail-safe mode keeps the door locked while power is applied and unlocks when power is removed for safe egress.

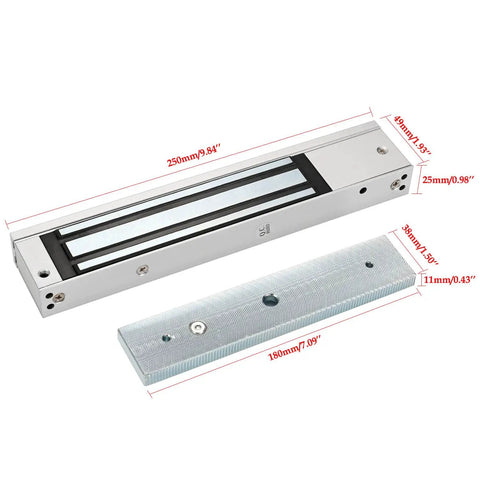

| Component | Dimensions | Material |
|---|---|---|
| Lock body | 250 x 49 x 25 mm (9.84 x 1.93 x 0.98 in) | Stainless steel |
| Armature plate | 180 x 38 x 11 mm (7.09 x 1.50 x 0.43 in) | Zinc |
✅ 600LBS holding force for strong on door security
✅ NC fail-safe operation (unlocks when power is off)
✅ 12V DC input, 480 mA current
✅ Stainless steel body with anti-residual magnesium design
💡 What is a magnetic door lock used for in access control systems? This is a handy way to manage entry and improve security in commercial spaces. - handy for securing doors in offices, stores, and facilities - works with armature plates and Z/L brackets for flexible mounting - offers strong holding force and reliable fail-safe operation - easy to install with standard mounting hardware
