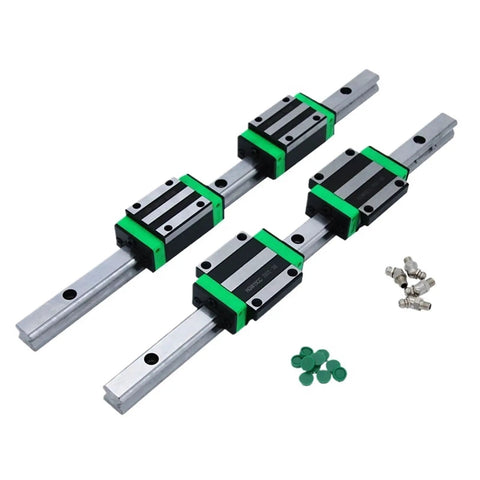

Heavy Duty Linear Motion Slide Kit With Four Hgw20cc Blocks Two Hgr20 Rails And Sfu2005 Ballscrew Assembly Mounted On Bk15bf15 Ends with green blocks and silver rails.
Heavy Duty Linear Motion Slide Kit With Four Hgw20cc Blocks Two Hgr20 Rails And Sfu2005 Ballscrew Assembly Mounted On Bk15bf15 Ends close-up of precision ballscrew showing threaded shaft and end bearing

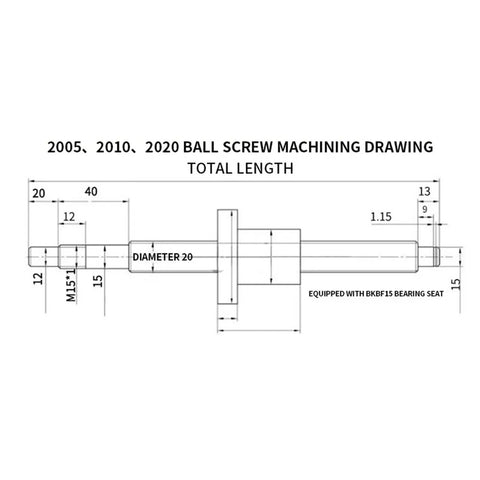

Heavy Duty Linear Motion Slide Kit With Four Hgw20cc Blocks Two Hgr20 Rails And Sfu2005 Ballscrew Assembly Mounted On Bk15bf15 Ends Machining drawing of SFU2005 ballscrew with dimensions.

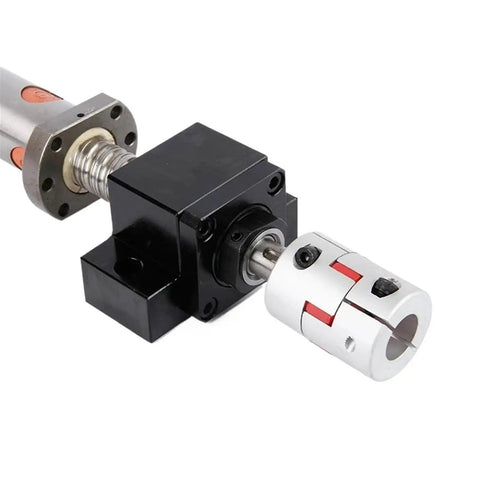

Heavy Duty Linear Motion Slide Kit With Four Hgw20cc Blocks Two Hgr20 Rails And Sfu2005 Ballscrew Assembly Mounted On Bk15bf15 Ends components showing the ballscrew and coupling.

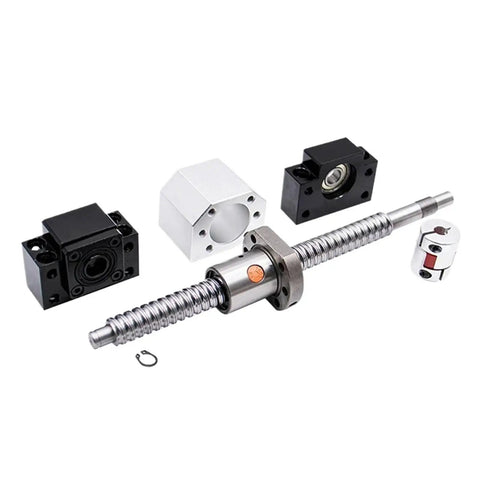

Heavy Duty Linear Motion Slide Kit With Four Hgw20cc Blocks Two Hgr20 Rails And Sfu2005 Ballscrew Assembly Mounted On Bk15bf15 Ends with components laid out.

Heavy Duty Linear Motion Slide Kit With Four Hgw20cc Blocks Two Hgr20 Rails And Sfu2005 Ballscrew Assembly Mounted On Bk15bf15 Ends Designed For Garage Builders On Any Workshop Rig

$452.95 $934.00you save $481.05
SKU: VXB0FDQGR6HC
UPC:





Precision Linear Motion Slide Kit With Ballscrew Assembly
✔️ HGW20CC blocks, HGR20 rails, SFU2005 screw, BK15BF15 ends

This complete linear motion assembly delivers reliable slide performance for workshop rigs and DIY CNC builds. The integrated guide track system pairs precision carriage blocks with a preassembled lead screw setup for exact axis movement on light fabrication and routing projects.

✅ Four HGW20CC linear guide blocks mounted on dual HGR20 rails for steady travel
✅ SFU2005 ground ballscrew paired with BK15BF15 bearing ends for clean torque transfer
✅ Import grade steel balls drive low friction circulation paths and quiet sliding action
✅ Compact footprint delivers high accuracy on small scale automatic equipment frames

💡 Why do heavy duty linear motion kits run smoother than open frame sliders on garage builds?
Direct bearing contact and sealed ball channels keep position locked tight under load. A handy rig like this cuts down on alignment headaches so you can focus on real production work.

- matched HGW20CC carriages track along hardened HGR20 guides to kill shaft play
- ground SFU2005 screws turn motor pulses into dead precise inching moves
- stacked BK15BF15 housing brackets eat radial weight and lock the shaft dead straight
- recycled steel ball loops dump friction heat fast for longer run times

✝️
