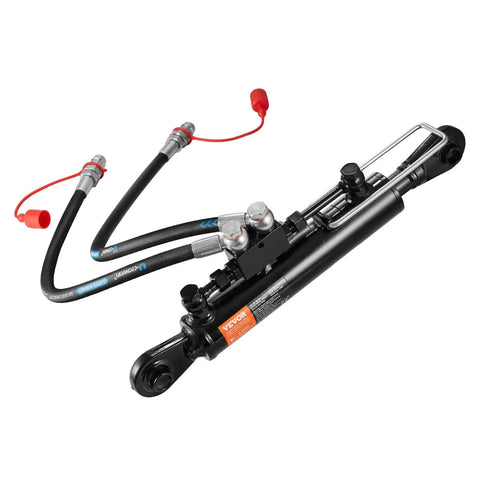

Heavy Duty Hydraulic Top Link For Cat 1 Tractors, Adjustable Length From Eighteen And One Eighth To Twenty Six And Three Eighths Inches, Eight And One Quarter Inch Stroke, Hydraulic Cylinder With Two Hoses And G Three Eighths Inch Check Valve
✔️ Single unit, 3/8 in inlet, 8.25 in stroke, 460 mm to 670 mm length

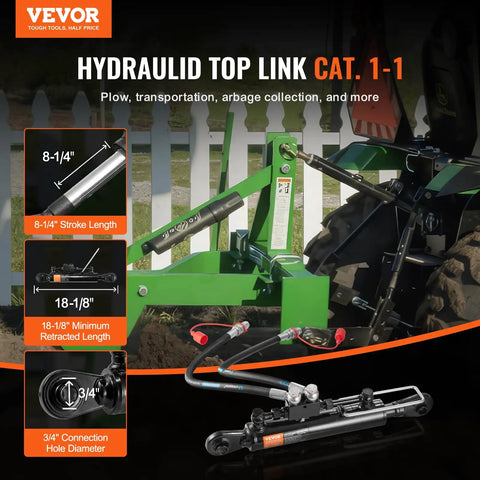

This heavy-duty hydraulic top link is designed for Cat 1-1 tractors, offering an adjustable length from 18-1/8 in to 26-3/8 in (460 mm to 670 mm) and an 8-1/4 in (210 mm) stroke. Built from thick 45# steel with a rust- and wear-resistant coating, it handles harsh field conditions. The kit includes two hoses and a high-sealing bidirectional check valve for precise, leak-free operation, making it a reliable choice for heavy plowing, waste handling, and other agrarian tasks.

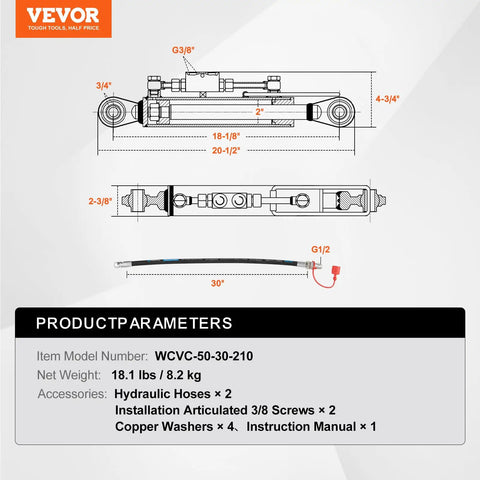

✅ Length range: 18-1/8 in to 26-3/8 in (460 mm to 670 mm)
✅ Stroke: 8-1/4 in (210 mm)
✅ Inlet/outlet diameter: 3/8 in (9.525 mm)
✅ Hose length: 30.1 in (765 mm)
✅ Max working pressure: 20 MPa (2900 psi) and 18 MPa (2610 psi)

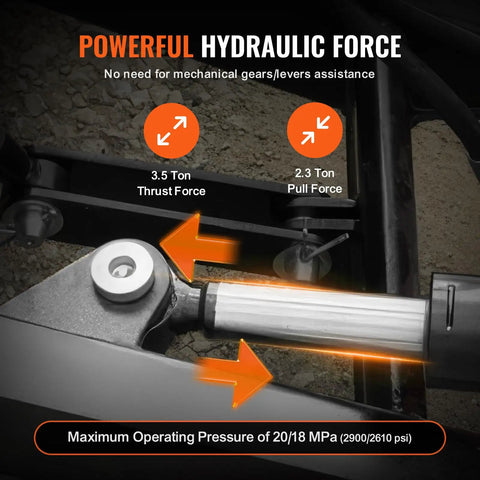

✅ Pushing force: 3.5 tons; pulling force: 2.3 tons

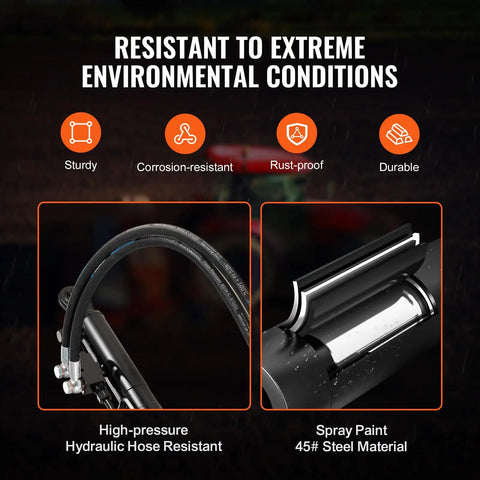

✅ Material: thick 45# steel with rust/wear coating

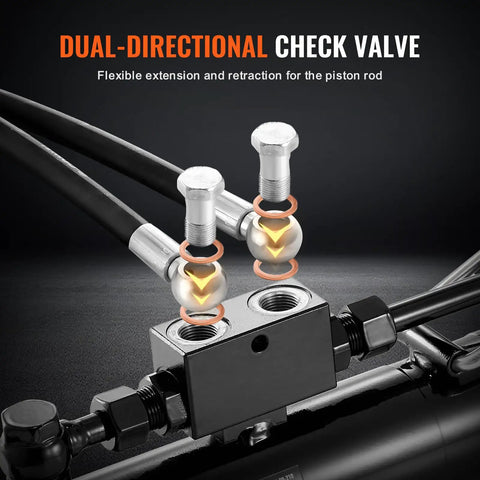

✅ Check valve: high-sealing bidirectional
✅ Includes two hoses for quick install
💡 What is a hydraulic top link used for on Cat 1 tractors?
The handy use is to adjust lift height and implement angle for better control.
- Keeps implement height consistent across uneven ground- Helps maintain hitch geometry for uniform draft
- Reduces manual adjustments by automatic hydraulic length changes
