Heavy Duty HGR20 1000mm Linear Guide Rail Kit With 4 HGH20CA Blocks For DIY CNC Routers Lathes And Mills, Pro Grade Precision Sliding, Carbon Steel Construction, Easy Install, Includes 2 Rails

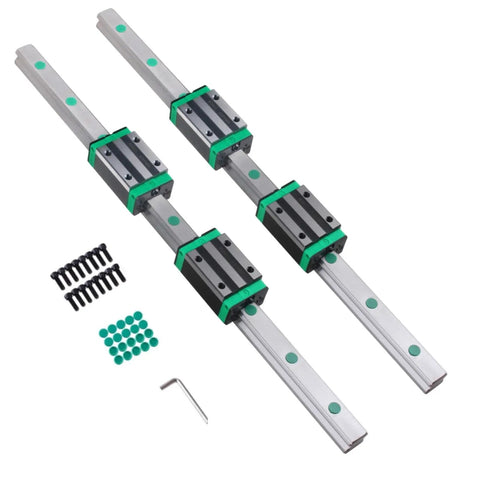

✔️ 2 x HGR20 1000mm rails, 4 x HGH20CA blocks, M5 mounting
This heavy-duty linear guide rail kit delivers precise, smooth motion for CNC routers, lathes, and mills. It features carbon steel rails and bearing steel blocks with chrome plating for durability and rust resistance. It’s designed for easy installation in DIY projects, with pre-drilled holes to speed setup.

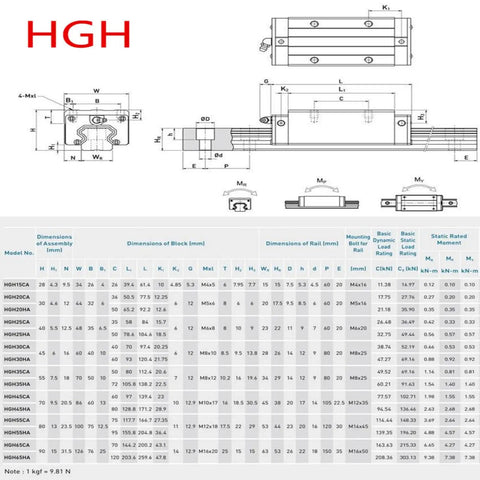

| Dimension | Metric | Imperial |
|---|---|---|
| Rail length | 1000 mm | 39.37 in |
| Rail height | 17.5 mm | 0.69 in |
| Rail width | 20 mm | 0.79 in |
| Bolt size | M5 x 16 mm | M5 x 0.63 in |

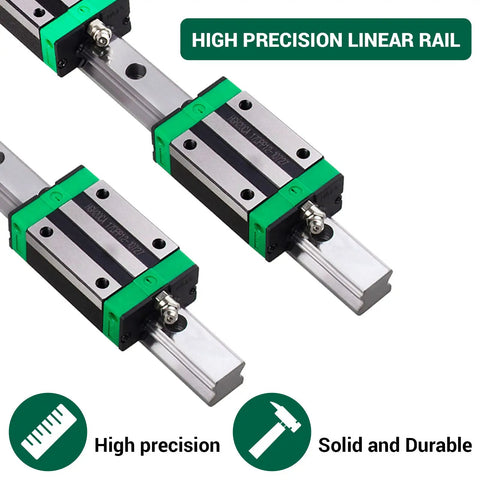

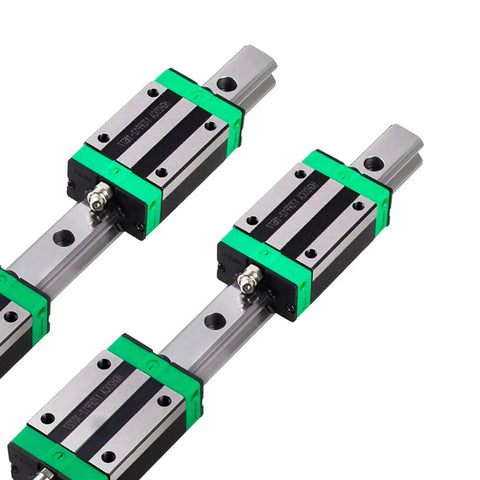

✅ 2 x HGR20 1000mm linear rails (1 m each) for sturdy CNC motion

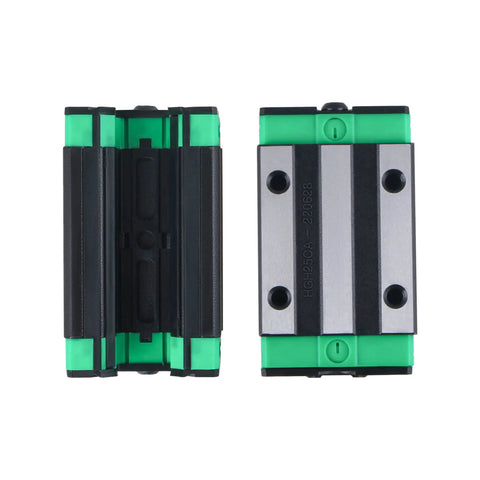

✅ 4 x HGH20CA slider blocks with aluminum housing for smooth, precise travel
✅ Rail height 17.5 mm; width 20 mm; fixed bolt size M5x16 mm

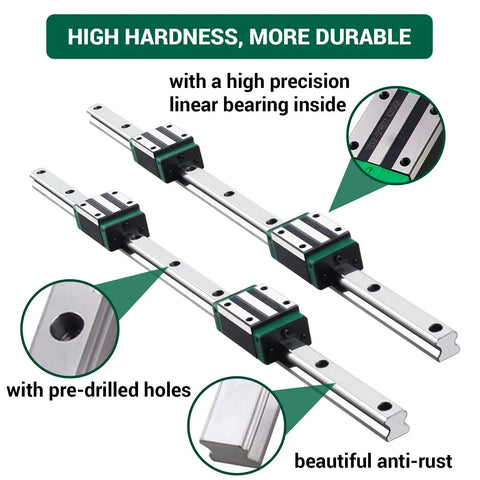

✅ Pre-drilled mounting holes for quick installation and alignment
✅ Chrome-plated surface resists rust; bearing steel components for durability
💡 What is a heavy duty linear guide kit used for in CNC machines? It helps provide stable, precise motion for DIY routers, mills and automation projects.
- handy for smooth, accurate linear motion in woodworking and metalworking
- improves repeatability under load and reduces drift during long runs
- simplifies installation with pre-drilled holes
