Heavy Duty Harmonic Gear Reducer Fourth Axis Rotary Table For Cnc Machining With 100Mm Triple Jaw Chuck And 22Mm Hollow Shaft Build That Slaps For Serious Indexing Jobs
✔️ 100mm triple jaw chuck 22mm hollow shaft 10:1 ratio
This single assembled fourth axis indexing table mounts straight onto standard mill beds to handle complex multiface cutting operations. Shop crews swing metal blanks around the fixed spindle while tracking precise angles during milling runs. The open center passageway clears room for draw bars and wiring so your fixturing never bumps rotating parts. Operators grab this kit for steady rotational control when roughing out slots or drilling cross patterns without manual realignment delays.
✅ One hundred millimeter base height levels rigid support

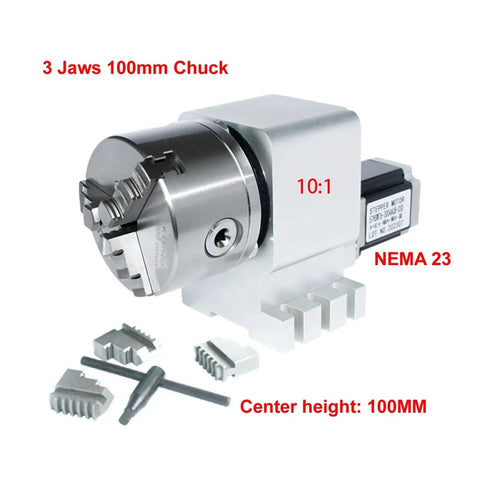

✅ Three jaw clamp secures raw stock firmly in place

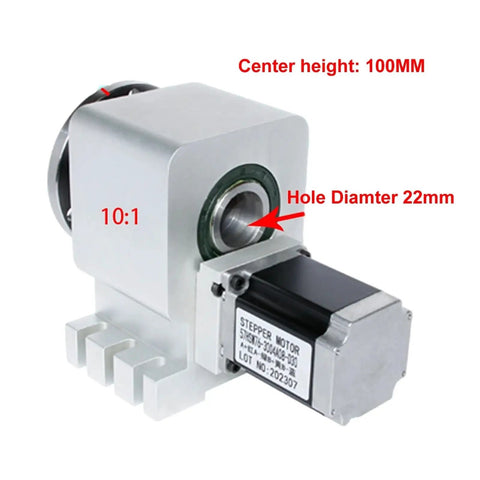

✅ Twenty two millimeter hollow spindle runs tools through center
✅ Ten to one reduction multiplier boosts torque output
✅ Point one eight degree step size locks tight angles
💡 What makes a harmonic drive rotary stage better than worm gears for custom CNC attachments?
- The thin tooth flex spline bends under light pressure to eliminate play without chewing up your stepper when you swing heavy plates around.
- Inline mounting sits handy right behind the controller motor so you keep bench clearance while pushing high torque through tough stainless parts.
- Through bored center accepts your own mandrel or bar stock keeping workflow moving fast when you drill multiple faces without touching calipers again.
- Sealed bearings lock the spin axis down firm so vibration stays low even when you ramp up feed rates on dense materials.
