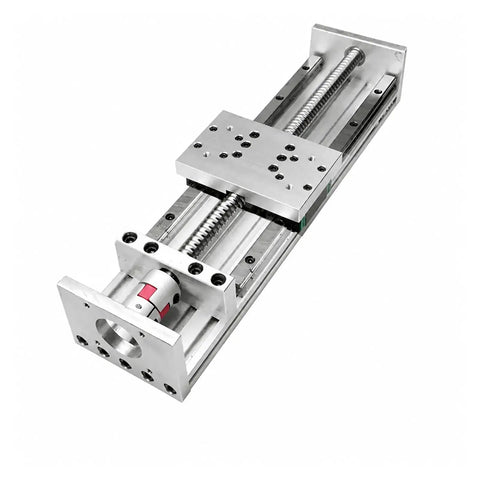

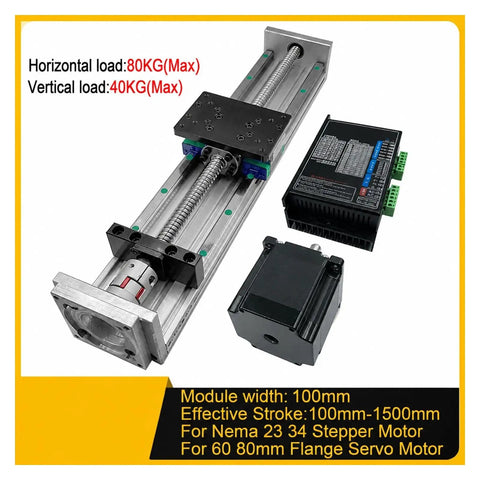

Heavy Duty Double Linear Rail Slide Stage With XYZ Axis Ball Screw Featuring Sfu1605 Or Sfu1610 Drive For Dead Nuts Accuracy Perfect For Cnc Builds That Glide Slick And Crush Projects Like A Boss Every Single Time
✔️ SFU1605 16mm screw HGR15 guide 80x120mm mount 50 to 1500mm stroke
This handy double slide assembly delivers predictable straight-line tracking for XYZ routers, laser markers, and custom automation builds that need dependable repeatability under load. Swap the drive rod to hit your preferred feed speed, bolt your board straight to the flat base, and run precise positioning jobs without constant tweaking.

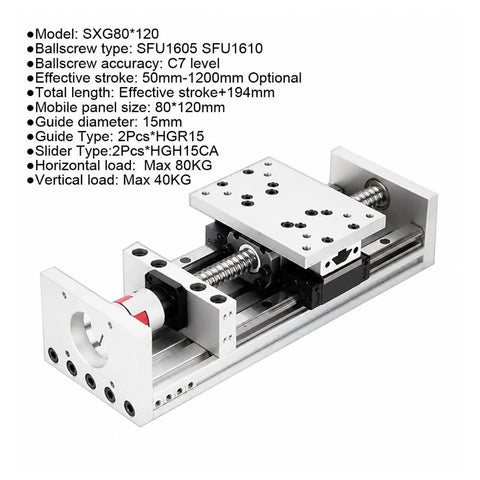

✅ Model SXG80120 built for XYZ axis setups with dual track support✅ Choose between SFU1605 or SFU1610 ball drive depending on your feed rate
✅ Available from 50mm to 1500mm travel distance plus fixed overhang length

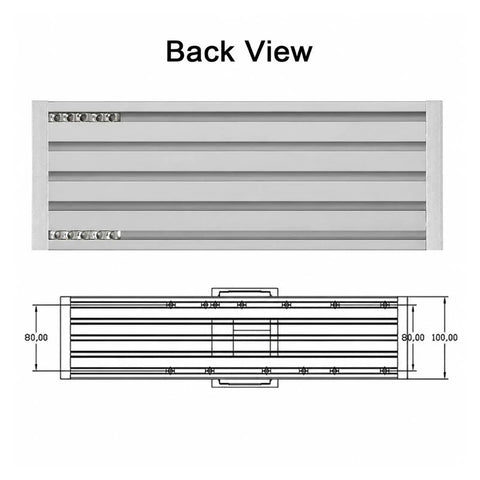

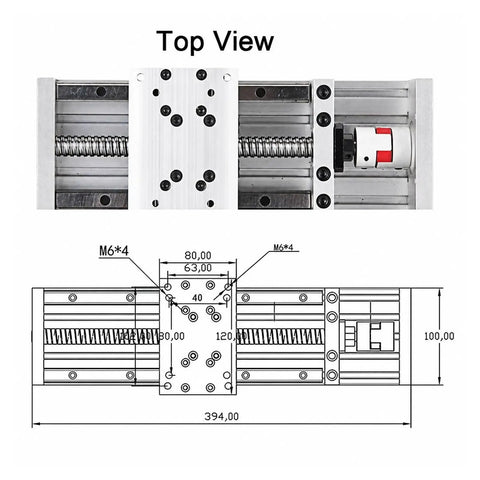

✅ Mounting footprint measures 80 × 120 mm for standard servo bracket fit

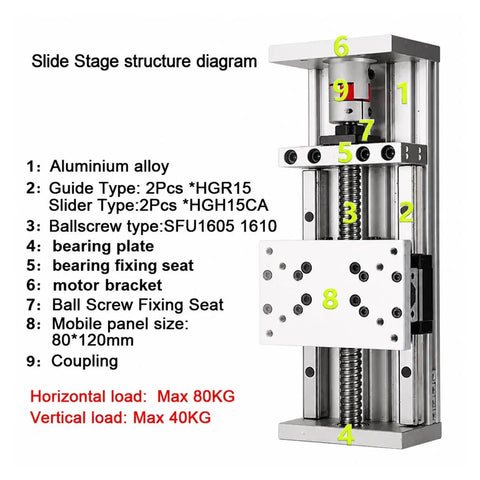

✅ Hardened bearing steel shafts paired with precision ground HGR15 channels
✅ Slider blocks drop right onto the rail for zero backlash performance
✅ Sturdy extruded aluminum base plate keeps alignment steady during work
💡 What factors determine optimal accuracy when upgrading XYZ axis builders with linear motion slides?
Getting tight tolerances on homemade gear really comes down to locking in the right motion tracks and drive ratios.
- Pair hardened rail segments with matched slider cartridges to kill lateral drift during cuts
- Pick the correct ball screw lead to balance torque against your target travel speed
- Align the mounting plate holes with standard servo mounts to cut down layout guesswork
- Apply fresh grease on a set schedule to keep sliding resistance low across the full stroke
✝️
