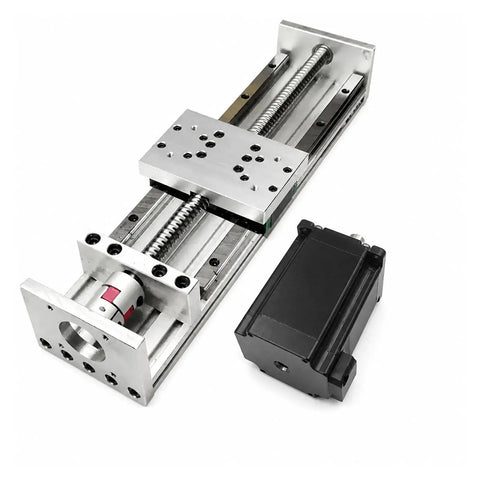

Heavy Duty Double Linear Rail Slide Stage For Xyz Axis Cnc Router Upgrade Features Custom Pitch Ballscrew Rock Solid Platform Dope Tracking And Sweet Smooth Motion Control
✔️ Single unit pack, 80x120mm plate, HGR15 guides, SFU16 ball screw
This single-axis motion controller replaces tired XY or Z tracks on desktop CNC routers and plasma cutters. Hobbyists grab the handy upgrade bracket to nail down precise cuts across hardwood and aluminum sheets while dodging common backlash issues.

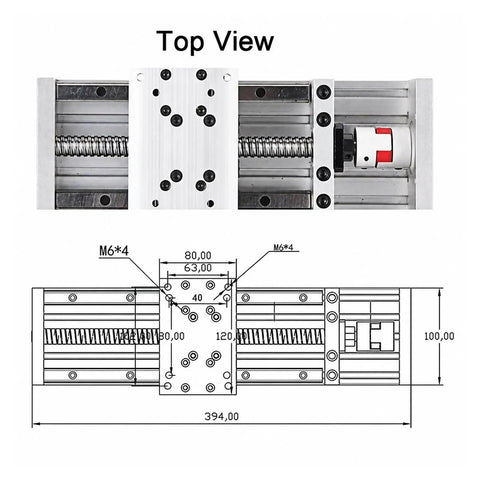

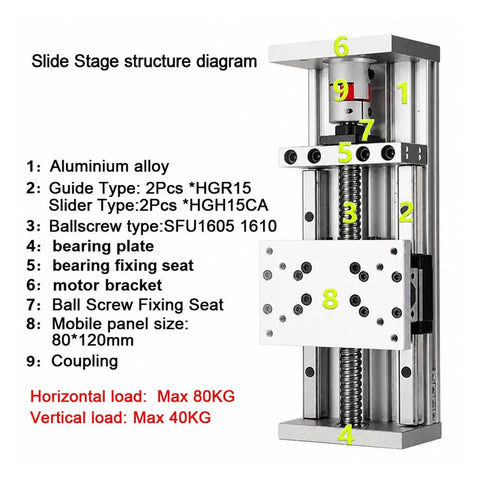

✅ Platform measures eighty by one twenty millimeters for secure tool attachment✅ Houses matched HGR15 guide rods alongside HGH15CA high accuracy carriage units
✅ Routes power through SFU16 screws rated at five or ten millimeter lead distances
✅ Bonds hardened steel track sections to a lightweight extruded aluminum foundation

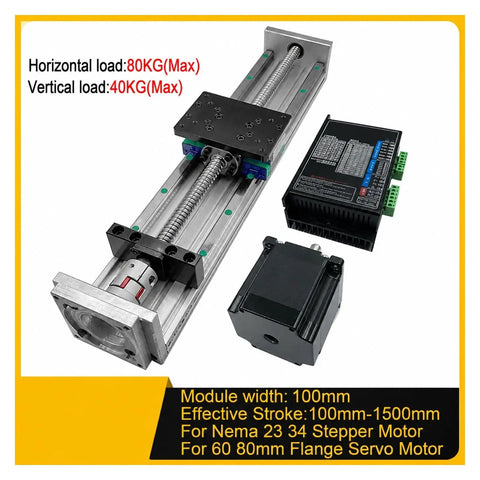

✅ Clears distances from fifty up to fifteen hundred millimeters per custom request
💡 What makes a dual rail linear slide mechanism essential for maintaining consistent CNC routing tolerance?
This gear drops right into legacy frames and keeps your bit perfectly square under heavy side loads.
- Preloaded rail pairs cancel lateral drift while carrying dynamic weights during rapid traverse moves
- Sealed carriage rollers shed metal chips and coolant so operators dodge unplanned teardowns mid shift
- Thick aluminum mounting plates distribute stress evenly so feed rates stay high without inducing vibration
- Tuned screw pitch settings let machinists pick either finer finishes or faster material removal rates
