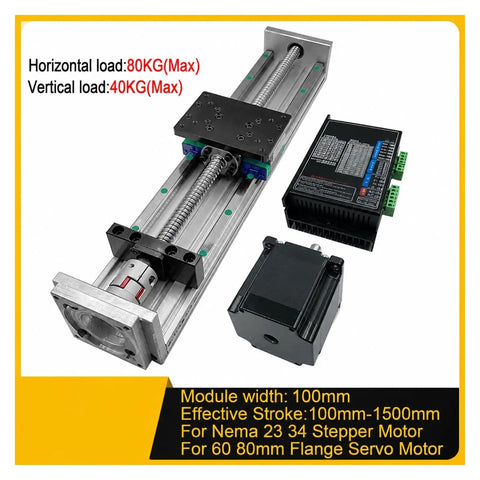

Heavy Duty Double Linear Rail Ball Screw Slide Stage With Precision Guide For Smooth XYZ Axis Travel And Rock Solid Stepper Motor Compatibility In Custom Build Projects
✔️ SFU1605 or SFU1610 ballscrew with HGR15 rails and HGH15CA sliders
This robust double linear rail ball screw slide stage delivers steady XYZ axis travel for DIY CNC routers, plasma cutters, and robotic arms powered by stepper motors. The rigid aluminum alloy base holds square alignment while the precision guide system absorbs cutting forces and prevents unwanted wobble during rapid moves.

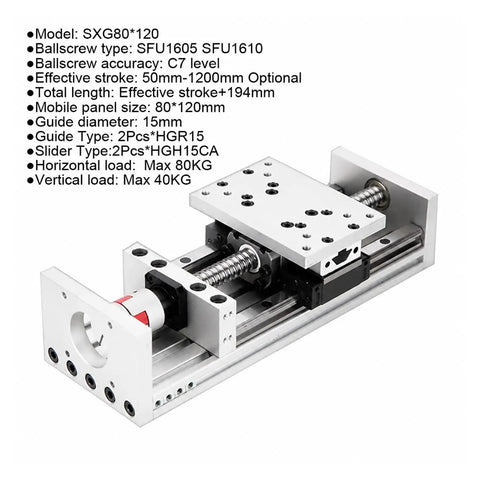

✅ Model SXG80120 engineered for reliable linear slide unit performance✅ SFU1605 or SFU1610 ballscrew options drive smooth positioning along the path
✅ Stroke lengths range from 50 mm to 1500 mm adding 194 mm to overall reach

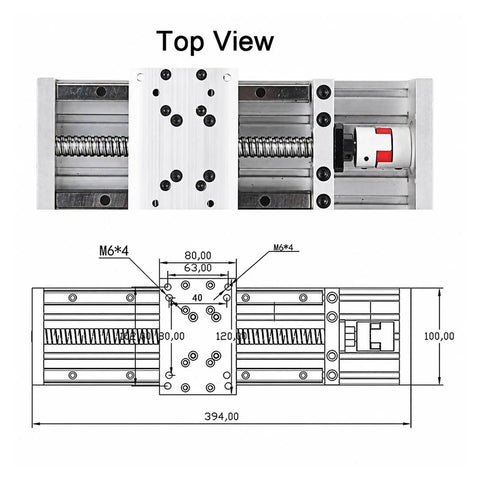

✅ Mounting plate footprint measures 80 mm by 120 mm for secure board attachment
✅ Dual HGR15 guide tracks work alongside HGH15CA carriages for zero play travel
✅ Hardened steel shafts and bearing steel rails pair with a cast aluminum foundation
💡 What makes a double linear rail ball screw slide stage handy for custom CNC builds?
Nailing axis movement is pretty straightforward once you dial in the specs.
- Sync the ballscrew lead to your driver stepping rate for cleaner stops
- Torque down the carriage bolts evenly so the tracks don't fight each other
- Snap basic bellows on the shaft to keep metal chips outta the nut
- Bolt the aluminum plate dead flat to your bed frame for solid rigidity
✝️
