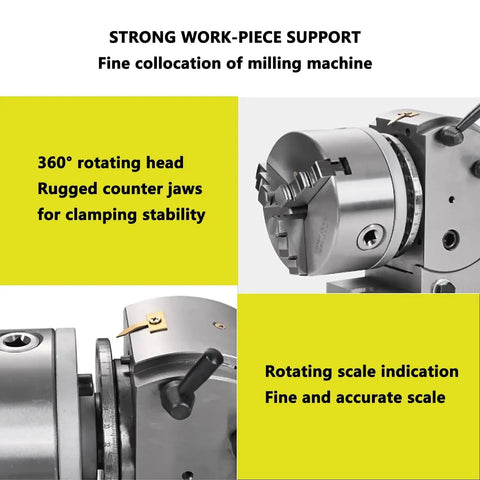

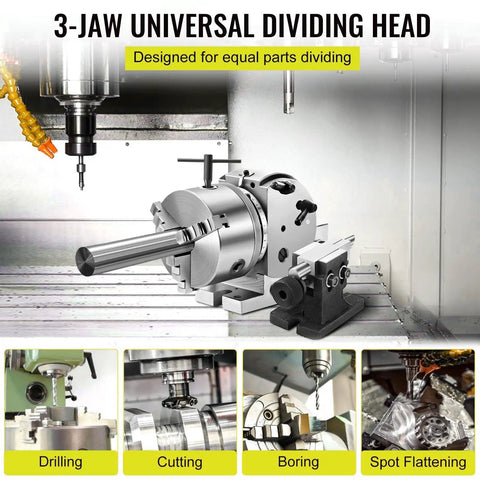

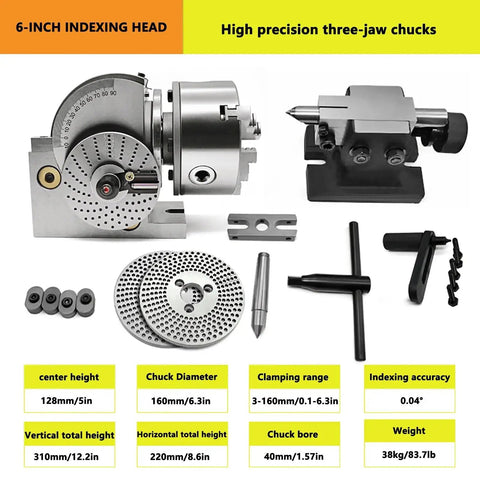

Heavy Duty Dividing Head With Precision Indexing Plates, Made For Vertical And Horizontal Milling Machines, Features A Rigid Three Jaw Chuck And Sturdy Tailstock, Built As A Dependable Shop Workhorse For CNC Milling And Precision Machining Jobs.

Precision Milling Indexer For Vertical Machines
✔️ Tilt range 10 degrees to 90 degrees With Tail Stock

This heavy duty dividing head attaches directly to milling machine tables to rotate workpieces during machining operations. It serves as an essential tool for automotive repair shops, mold makers, and general fabrication facilities that need accurate angular positioning.

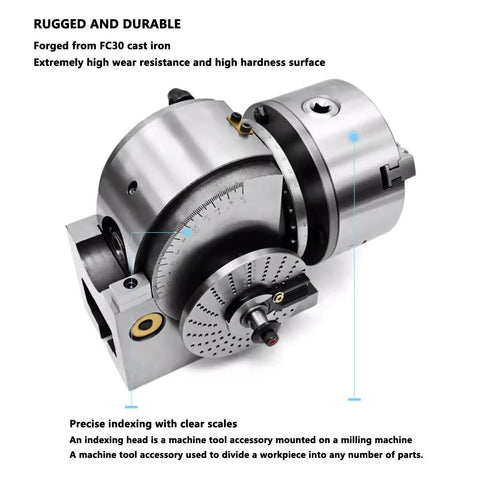

✅ Hardened body features a mirror finish for extended wear resistance

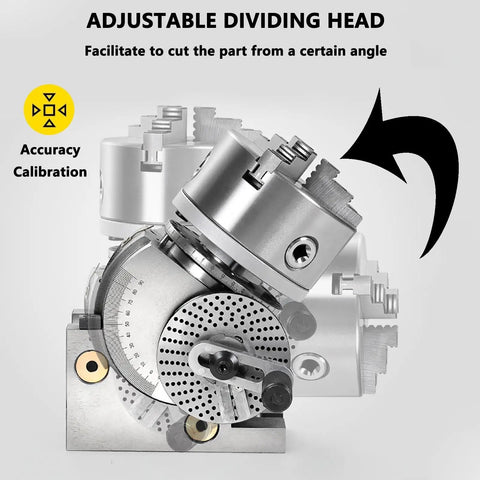

✅ Headstock tilts ten degrees below horizontal up to ninety degrees vertical

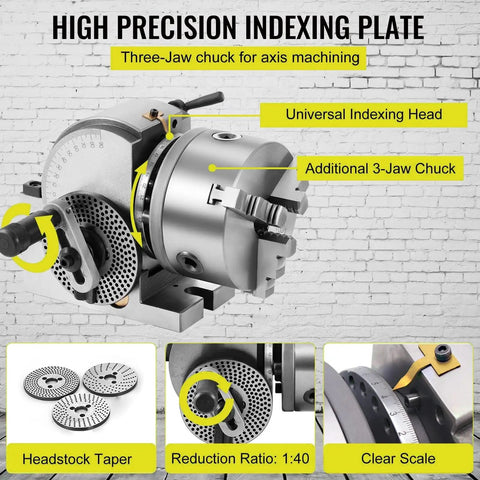

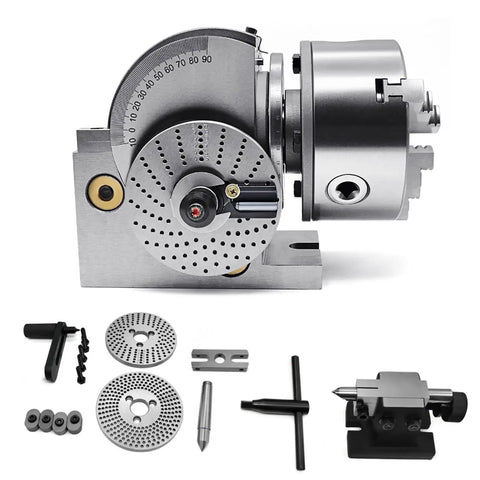

✅ Direct indexing plate mounts to headstock plus two replaceable hole plates
✅ Includes sturdy tailstock support bar for stabilizing longer metal rods

💡 How to set up a rotary indexer for accurate angle cuts on steel parts?
To get a handy setup when positioning workpieces, you need a reliable unit that matches your machine spindle. This indexing head delivers steady rotational control while keeping your materials locked in place during heavy cutting.
- Match the shaft diameter to your mill table arbor slots for secure mounting
- Align the primary division plate markings with the index pin before clamping
- Adjust the tilt bracket until the required cut depth reaches the material center
- Lock all locking handles firmly to prevent vibration during high speed operation
