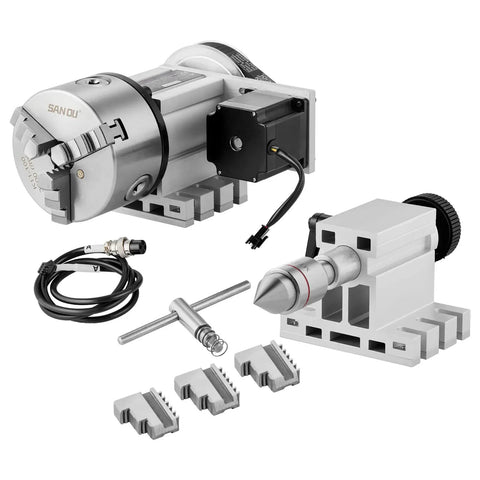

Heavy Duty CNC 4th Axis Rotary Indexing Dividing Head
✔️ K11 3Jaw Chuck MT2 Tailstock 6:1 Ratio Nema23 Driver Unit

This heavy duty dividing head adds precise rotational control to your CNC milling setup, making it ideal for routing complex 3D shapes, engraving curved surfaces, and machining angular components that require accurate indexing. Built around a solid aluminum base with integrated clamping jaws and a counterbalancing tailstock, it locks workpieces securely while maintaining stable alignment during high speed cuts.

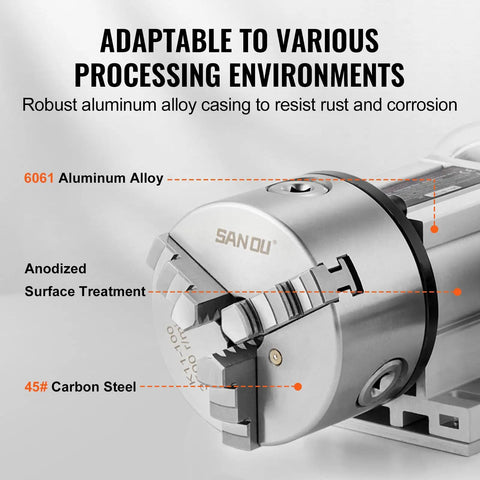

✅ Machined 6061 aluminum alloy frame with anodized exterior finish

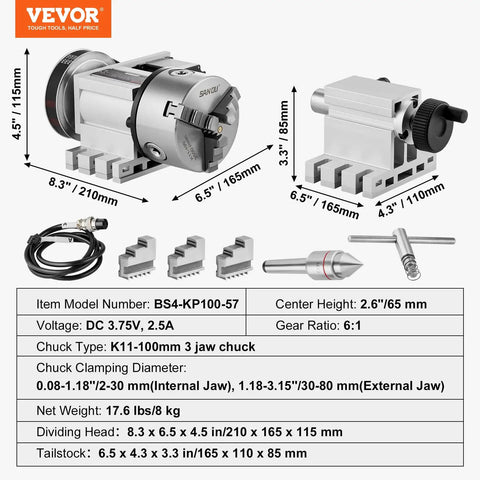

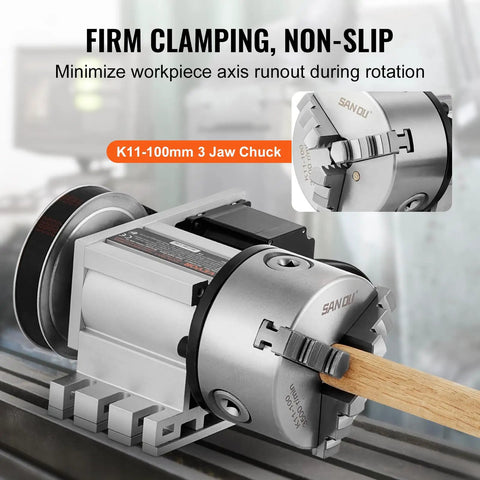

✅ K11 three jaw chuck accepting internal jaws 0.08 to 1.18in / 2 to 30 mm and external jaws 1.18 to 3.15in / 30 to 80 mm
✅ MT2 taper live center tailstock plus rotating thimble for secure workpiece support

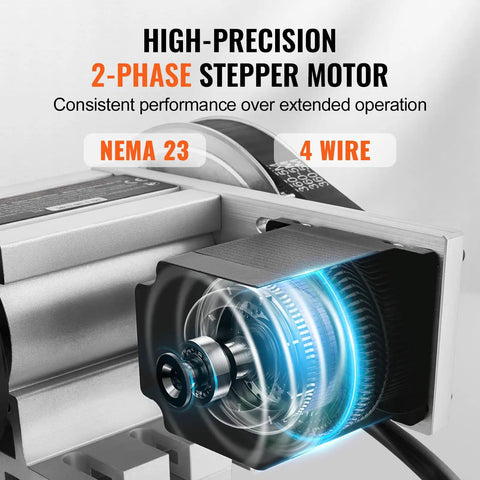

✅ Stepper motor operating at DC 3.75 volts drawing 2.5 amps with compact 2.2x2.2x2.2in / 57x57x56 mm physical size

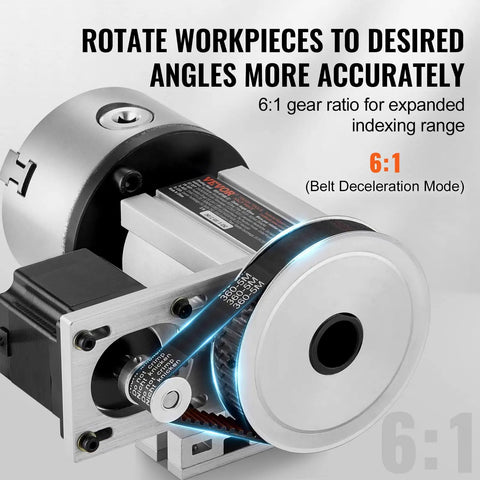

✅ 6:1 gear reduction providing smooth low speed rotation and reduced vibration

💡 How does a precision rotary indexing head improve 3D milling accuracy on a standard CNC router machine?
A dedicated 4th axis rotary table transforms linear cutter paths into multi angled operations by locking workpiece positioning at exact fractional degrees. Reliable angle matching relies on stable mechanical feedback and consistent gear engagement. Key advantages include:
- Reduced step overs and smoother surface finishes when carving organic curves or tapered profiles
- Consistent tool engagement across complex geometries without manual realignment headaches
- Quicker job changeovers using fixed jaw chucks and adjustable center supports
- Lower vibration levels during extended cutting runs thanks to optimized torque transmission
