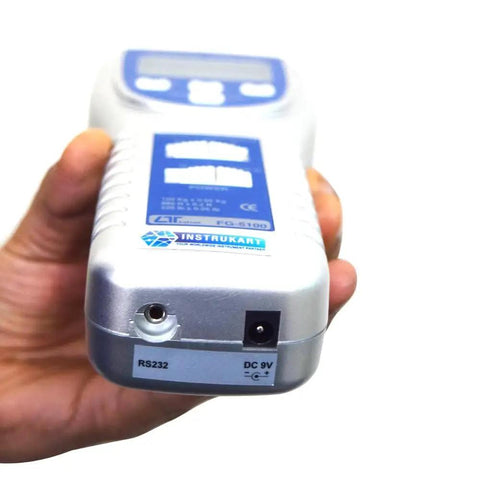

Heavy Duty Digital Force Gauge With 100 Kg Capacity Dual Hook Tension And Compression Tester For Industrial Lab And Quality Control Applications Push Pull Gauge FG5100
✔️ 100 kg capacity, dual-hook tension/compression, RS-232 output

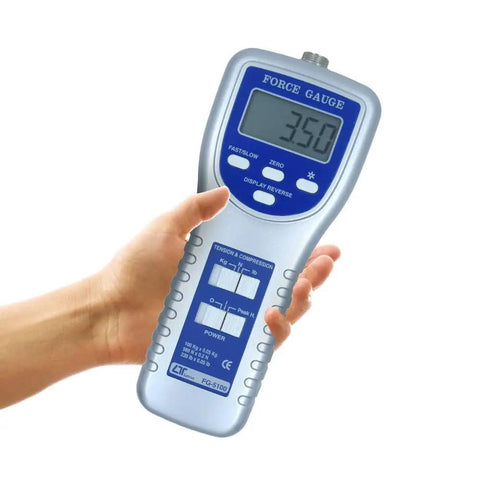

This heavy-duty digital force gauge is a push-pull tester designed for industrial labs and quality control use. It measures tension and compression with a dual-hook setup, supports peak load capture, and streams data via RS-232.
✅ Measuring capacity: 100 Kg / 220 lb / 980 N
✅ Resolution: 0.05 Kg / 0.05 lb / 0.2 N
✅ Accuracy: ± (0.5% + 2 digits) within 23± 5℃

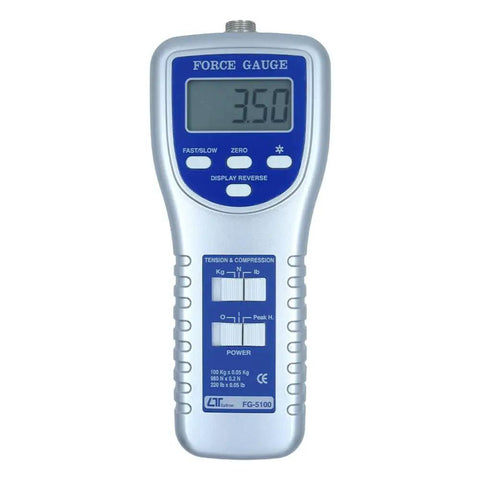

✅ Display: 5 digits LCD with backlight, 16 mm (0.63 in) digit size

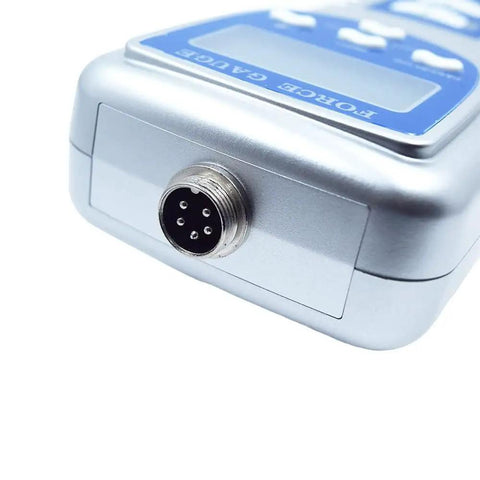

✅ Data Output: RS-232 serial interface
✅ Tension & Compression: Push & Pull, Peak Hold
✅ Overload Capacity: Max. 150 kg; Full Scale Deflection < 1 mm

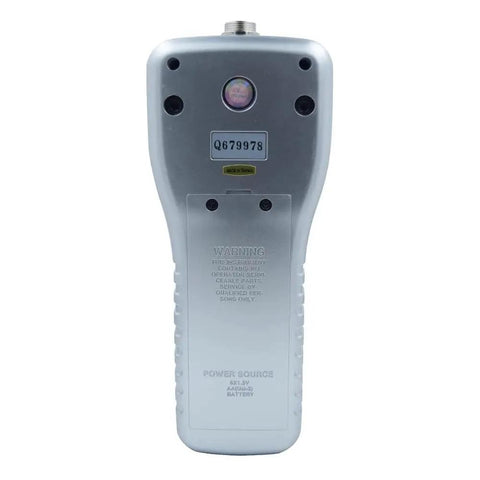

✅ Power: 6 x AA or DC 9V adapter (not included)

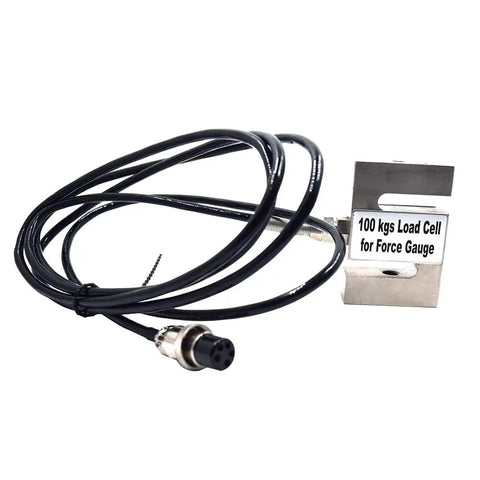

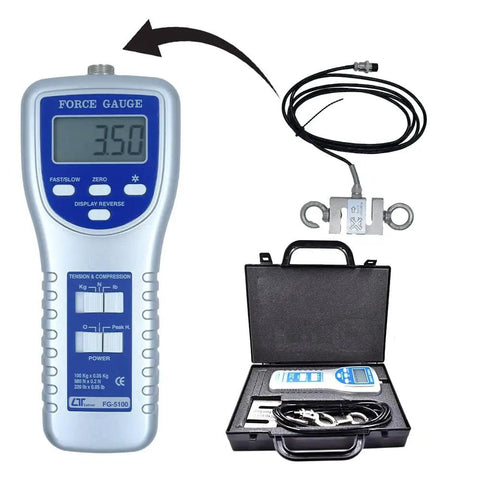

✅ Sensor: S-type load cell, Cable length 2 m
💡 What is a heavy-duty digital force gauge used for in industrial QA and testing environments?
This handy device is used to measure and document force during testing and quality control.

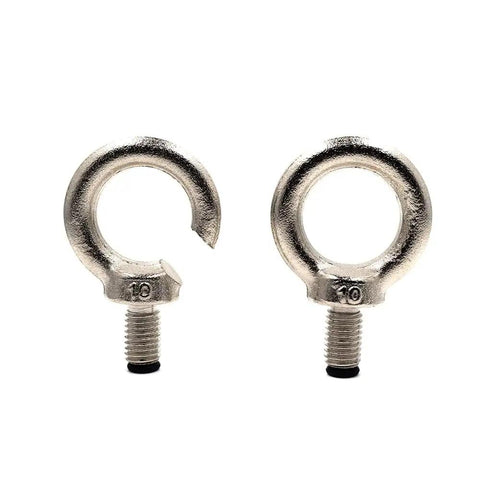

- High capacity up to 100 Kg for basic to heavy-duty tests- Dual-hook design supports both tension and compression
- RS-232 output enables easy connection to computers or lab equipment
- Peak hold and zero tare features for repeatable measurements
✝️
