Heavy Duty Dc Micro Linear Actuator Motor Packin 188 Newtons Thrust With Snap Swap Stroke Options For Effortless Home Builds That Run Clean Deliver Smooth Bangin Motion And Zero Sweat Setup You Will Trust
✔️ 6V-24V DC Actuator 188N Load Aluminum Alloy Body Low Noise Build
This heavy duty DC micro linear actuator motor delivers bangin smooth motion. You get reliable thrust for project builds and automation tasks that run clean. The compact unit pumps up to 188 newtons while humming under 60dB for quiet workplace vibes. Mount it on sliding panels, lifting stages, or transport gear to grab steady linear control that sticks around.
✅ 6V-24V DC input supports flexible wiring options for various projects✅ Max load capacity reaches 188 newtons for dependable high thrust performance

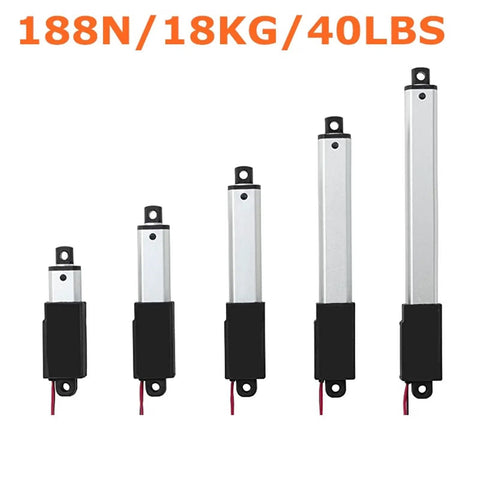

✅ Stroke length choices span 30mm through 150mm to suit different travel spans
✅ Aluminum alloy core tube offers tough resistance against wear and tear
✅ Quiet operation measures under 60dB to keep your workspace peaceful
✅ Integrated potentiometer feedback pinpoints exact slider positions reliably
✅ Top speed clocks in at 150mm per second for brisk linear movement

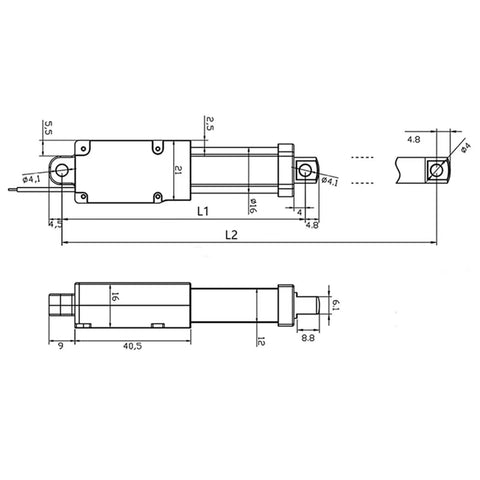

| Stroke Length | Closed Length | Extended Length |
|---|---|---|
| 30 mm | 79.5 mm | 104.5 mm |
| 50 mm | 104.5 mm | 154.5 mm |
| 75 mm | 129.5 mm | 204.5 mm |
| 100 mm | 154.5 mm | 254.5 mm |
| 150 mm | 204.5 mm | 354.5 mm |
💡 How does varying DC supply voltage change the thrust delivery and slide speed profile of a heavy-duty linear actuator module?
Selecting the right drive voltage is handy since it tunes the magnetic field strength that produces pushing power and determines rod extension timing.
- Ramping input volts from 6V toward 24V lifts stall load capacity and pushes max travel rate higher toward 150mm per second limits
- Built-in potentiometer channels kill overshoot bounce and nail repeatability without extra sensor wiring overhead
- Observing duty cycle boundaries stops winding bake-out that destroys brush contact points and drains magnet retention over time
- Lightweight aluminum inner cylinder cuts inertial drag to sharpen response agility and drop current surge peaks at startup
