Heavy Duty CNC Linear Stage With 12 Inch Stroke And 300mm Travel 2005 Ballscrew Four Slide Double Rail 550 Lb Load 250 Kg Linear Table For Nema23 57mm And Nema34 86mm Stepper Motors

Heavy Duty CNC Linear Stage with 12 in Stroke 300mm Travel
✔️ 2005 ballscrew, 4-slide double rail, 550 lb load, 250 kg

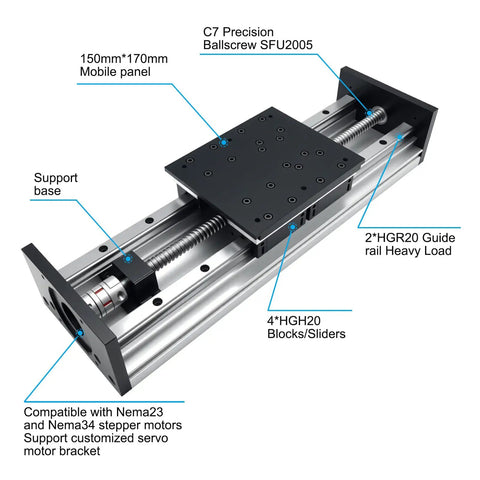

This CNC linear stage provides precise, high-load positioning for manufacturing, aerospace, logistics, construction, and medical research. It features a 12 inch stroke (300 mm travel) driven by a 20 mm diameter, 5 mm pitch ballscrew, and uses two HGR20 rails with four HGH20 sliders for rigidity and smooth motion. The mobile panel measures 150 x 170 mm, and the aluminum structure helps resist rust. Ready-to-use kit includes NEMA23 57 mm and NEMA34 86 mm flanges and essential couplings and bearings for quick assembly. Motor not included.

✅ Screw diameter 20 mm; pitch 5 mm; 5 mm travel per turn
✅ Guide system: 2x HGR20 rails and 4x HGH20 sliders for rigidity
✅ Horizontal load up to 551 lb (250 kg); vertical up to 220 lb (100 kg)
✅ Max speed 4 in/s (100 mm/s); aluminum structure resists rust

💡 What is a heavy duty CNC linear stage used for in precise motion control? This handy device is built for accurate, repeatable positioning in automated systems. - highly load-bearing platform for fixtures and tooling - smooth, accurate travel with ball screw and dual rails - easy integration with standard stepper motors - quick setup with a ready-to-use kit

✝️
